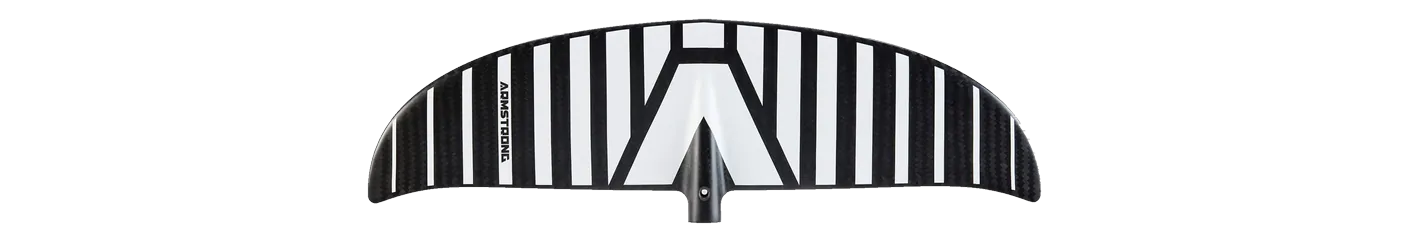

Armstrong CF (Carving Freeride) V1 CF1200: a legacy wing, no longer in Armstrong's current range. 1,200 cm², 675 mm span, aspect ratio 3.80. The current wings that match it within ±5% area and ±8% aspect ratio, from Armstrong's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Slingshot | One-Lock Kite 1255 | 1,255 | +4.6% | 4.10 | +7.9% | 715 | C1 Low aspect |
| Family | CF (V1) |
|---|---|
| Size | CF1200 |
| Area, cm² | 1,200 |
| Area basis | unknown |
| Span, mm | 675 |
| Chord, mm | — |
| Aspect ratio | 3.80 |
| Band | C1 Low aspect |
| Brand files it under | All-round / freeride |
| Disciplines | wing, prone, kite, wake, sup |
| Construction | carbon |
| Model year | 2019-2021 |
| Source | retailer |
The brand publishes no aspect ratio; this one is derived from its published span and area (span² ÷ area).
See Armstrong on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
