Armstrong CF V2 (Carving Freeride) CF2050
- Discontinuedsuperseded or no longer in the brand’s current range
- 2,050area, cm²
- 972span, mm
- 4.82aspect ratio
- Lowaspect · AR ≤ 6.0
Family CF V2 Brand’s category All-round / freeride Disciplines wing, wake, sup, downwind carbon · 2022-2024

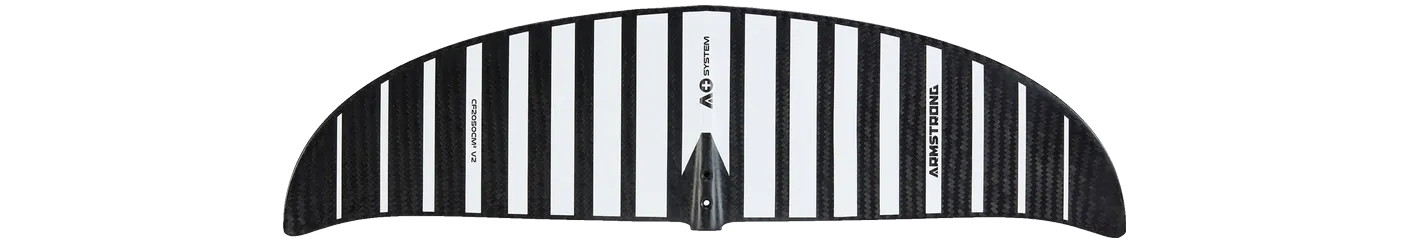

The Armstrong CF V2 (Carving Freeride) CF2050’s planform, traced from a retailer’s photograph rather than from Armstrong’s own.
The CF V2 has run 4 sizes, 950–2,050 cm², including discontinued sizes, and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 972 mm span is 28% narrower than typical for the area — the median across the 46 current wings within 10% of its size is 1,350 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Ultra Jet Front Wing 2000 | 2,000 | -2.4% | 5.00 | +3.7% | 1,000 | Low aspect |
| North | Sonar MA2100v2 | 2,100 | +2.4% | 4.80 | -0.4% | 1,000 | Low aspect |
Specifications
| Family | CF V2 |
|---|---|
| Size | CF2050 V2 |
| Area, cm² | 2,050 |
| Area basis | unknown |
| Span, mm | 972 |
| Chord, mm | — |
| Aspect ratio | 4.82 |
| Band | Low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, wake, sup, downwind |
| Construction | carbon |
| Model year | 2022-2024 |
| Source | retailer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. The figures above are read from a retailer's listing rather than Armstrong's own pages, converted to comparable units.
