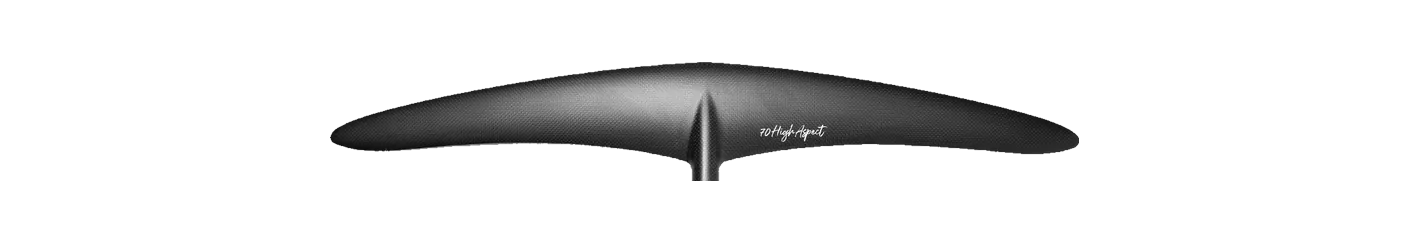

Lift Foils 70 High Aspect Front Wing
- 452area, cm²
- 749span, mm
- 12.10aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family High Aspect Brand’s category Glide / high aspect Disciplines prone, efoil standard modulus carbon · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Levitaz Front Wing R6 V2, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The High Aspect runs 3 sizes, 452–775 cm²; aspect ratio moves 10.2–12.1 across the range.
Its 749 mm span is 14% wider than typical for the area — the median across the 12 current wings within 10% of its size is 655 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Levitaz | Front Wing R6 V2 | 430 | -4.9% | 12.90 | +6.6% | 740 | Very high aspect |
Specifications
| Family | High Aspect |
|---|---|
| Size | 70 |
| Area, cm² | 452 |
| Area basis | unknown |
| Span, mm | 749 |
| Chord, mm | — |
| Aspect ratio | 12.10 |
| Band | Very high aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | prone, efoil |
| Construction | standard modulus carbon |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
