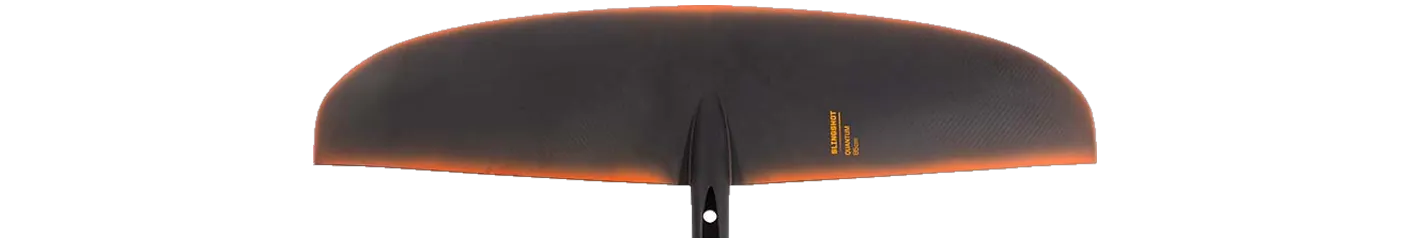

Slingshot Quantum 85
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,476area, cm²
- 856span, mm
- 4.96aspect ratio
- Lowaspect · AR ≤ 6.0
Family Hover Glide Quantum Chord 211 mm Brand’s category Glide / high aspect Disciplines prone, windfoil, pump carbon · 2021
No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Armstrong S1 (Step 1) 1550 (#1) is already over it. Select a numbered wing to draw it — up to three at a time.
Its 856 mm span is 26% narrower than typical for the area — the median across the 83 current wings within 10% of its size is 1,150 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 1.4× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | S1 (Step 1) 1550 | 1,550 | +5.0% | 5.30 | +6.9% | 905 | Low aspect |
| Naish | Ultra Jet Front Wing 1450 | 1,450 | -1.8% | 5.50 | +10.9% | 881 | Low aspect |
| Takuma | Kujira Helium Front Wing 1500 | 1,500 | +1.6% | 5.50 | +10.9% | 910 | Low aspect |
Specifications
| Family | Hover Glide Quantum |
|---|---|
| Size | 85 |
| Area, cm² | 1,476 |
| Area basis | unknown |
| Span, mm | 856 |
| Chord, mm | 211 |
| Aspect ratio | 4.96 |
| Band | Low aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | prone, windfoil, pump |
| Construction | carbon |
| Model year | 2021 |
| Source | manufacturer · read 2026-10-05 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
