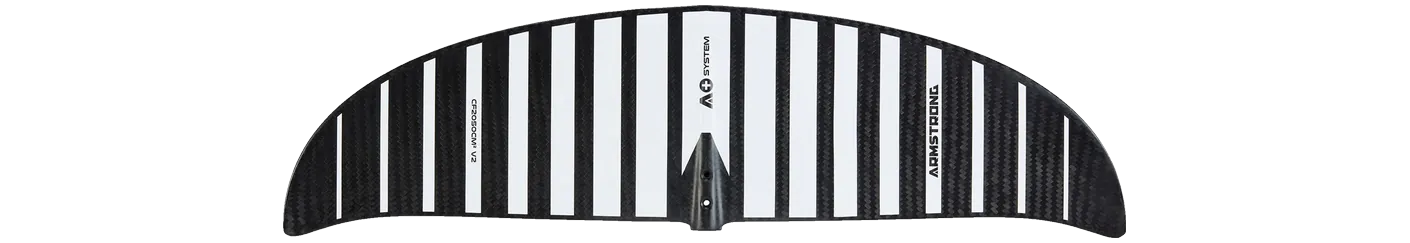

Armstrong CF V2 (Carving Freeride) CF1600
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,600area, cm²
- 856span, mm
- 4.85aspect ratio
- Lowaspect · AR ≤ 6.0
Family CF V2 Brand’s category All-round / freeride Disciplines wing, prone, wake, kite, sup, downwind carbon · 2022-2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Takuma LOL ProFoil Front Wing 1600, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The CF V2 has run 4 sizes, 950–2,050 cm², including discontinued sizes, and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 856 mm span is 26% narrower than typical for the area — the median across the 78 current wings within 10% of its size is 1,155 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takuma | LOL ProFoil Front Wing 1600 | 1,600 | +0.0% | 4.68 | -3.5% | 865 | Low aspect |
| Slingshot | One-Lock Ease 1550 | 1,550 | -3.1% | 4.80 | -1.0% | 866 | Low aspect |
Specifications
| Family | CF V2 |
|---|---|
| Size | CF1600 V2 |
| Area, cm² | 1,600 |
| Area basis | unknown |
| Span, mm | 856 |
| Chord, mm | — |
| Aspect ratio | 4.85 |
| Band | Low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone, wake, kite, sup, downwind |
| Construction | carbon |
| Model year | 2022-2024 |
| Source | retailer |
The brand publishes this aspect ratio, but its own span and area (span² ÷ area) give a figure 5–10% away. The published number is kept and marked.
Data current to August 2026. The figures above are read from a retailer's listing rather than Armstrong's own pages, converted to comparable units.
