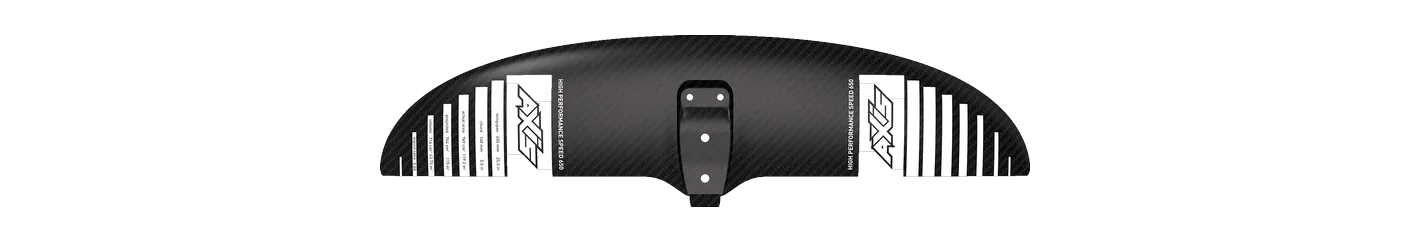

Axis HPS (High Performance Speed) HPS 650 hydrofoil front wing: 769 cm², 650 mm span, aspect ratio 5.49, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Slingshot | One-Lock Kite 755 | 755 | -1.8% | 5.70 | +3.8% | 657 | C1 Low aspect |
| Family | HPS |
|---|---|
| Size | HPS 650 |
| Area, cm² | 769 |
| Area basis | flat |
| Span, mm | 650 |
| Chord, mm | 140 |
| Aspect ratio | 5.49 |
| Band | C1 Low aspect |
| Brand files it under | All-round / freeride |
| Disciplines | wing, downwind, prone, sup, kite, pump, wake |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio contradicts its own span and area by more than 10%, so the geometric figure (span² ÷ area) is used instead and the row is filed as a brand data error.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
