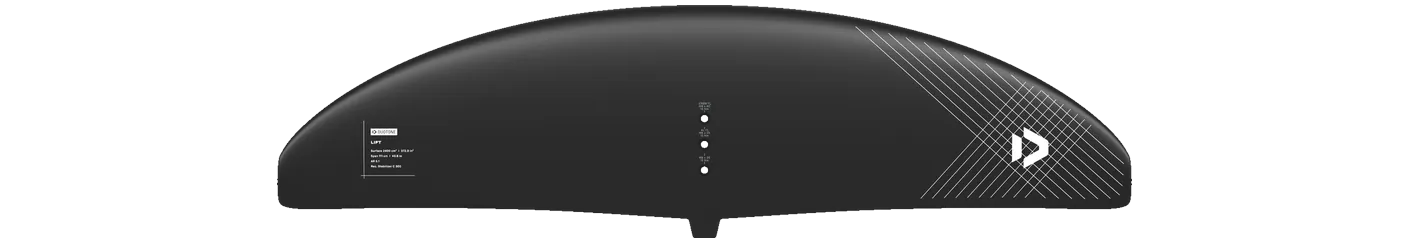

Duotone Lift 2400
- 2,400area, cm²
- 1,110span, mm
- 5.10aspect ratio
- Lowaspect · AR ≤ 6.0
Family Lift Brand’s category Entry Disciplines wing glass · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Armstrong S1 (Step 1) 2450, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
Its 1,110 mm span is 25% narrower than typical for the area — the median across the 18 current wings within 10% of its size is 1,480 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | S1 (Step 1) 2450 | 2,450 | +2.1% | 4.80 | -5.9% | 1,054 | Low aspect |
Specifications
| Family | Lift |
|---|---|
| Size | 2400 |
| Area, cm² | 2,400 |
| Area basis | unknown |
| Span, mm | 1,110 |
| Chord, mm | — |
| Aspect ratio | 5.10 |
| Band | Low aspect |
| Brand’s category | Entry |
| Disciplines | wing |
| Construction | glass |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
