GONG Ypra Race V3 480 cm²
- 480area, cm²
- 690span, mm
- 9.90aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Ypra Area basis projected Chord 98 mm Brand’s category Race / freerace Disciplines race, kite, wing Pro Team / Carbon HM · 2025

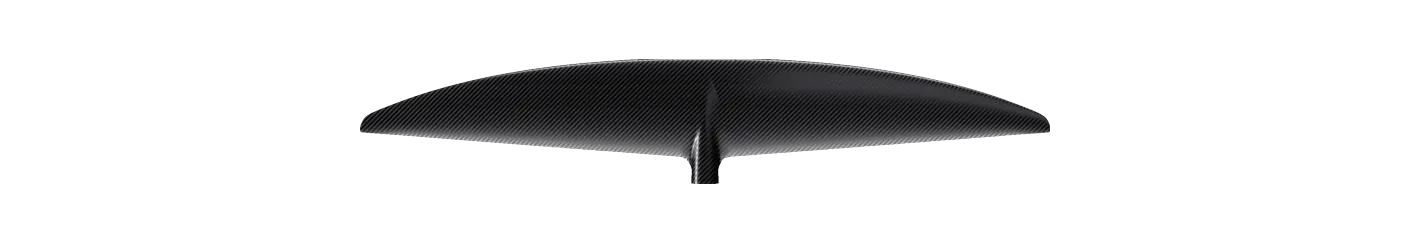

The GONG Ypra Race V3 480 cm²’s planform, traced from GONG’s own plan-view photograph.
The Ypra Race V3 runs 4 sizes, 430–670 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 690 mm span is 4% wider than typical for the area — the median across the 20 current wings within 10% of its size is 665 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Code Foils | S Series Front Wing 500S | 500 | +4.2% | 9.50 | -4.0% | 695 | Mid aspect |
Specifications
| Family | Ypra |
|---|---|
| Size | 480 cm² |
| Area, cm² | 480 |
| Area basis | projected |
| Span, mm | 690 |
| Chord, mm | 98 |
| Aspect ratio | 9.90 |
| Band | High aspect |
| Brand’s category | Race / freerace |
| Disciplines | race, kite, wing |
| Construction | Pro Team / Carbon HM |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
