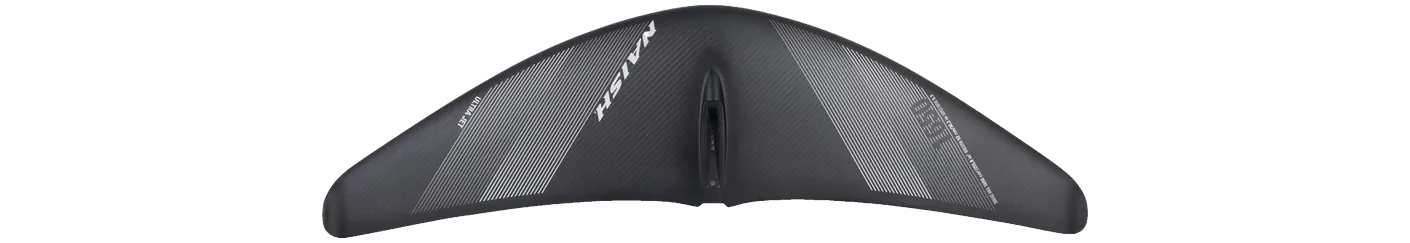

Naish Ultra Jet Front Wing 1650
- 1,650area, cm²
- 920span, mm
- 5.30aspect ratio
- Lowaspect · AR ≤ 6.0
Family Ultra Jet Area basis projected Brand’s category All-round / freeride Disciplines wing, sup, kite, prone carbon/glass composite · 2024-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Takoon Starter Front Wing 1600, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ultra Jet Front Wing runs 8 sizes, 650–2,450 cm², and changes proportion as it grows: aspect ratio runs 4.1 at one end of the range to 7.1 at the other, so its sizes differ in shape as well as in area.
Its 920 mm span is 23% narrower than typical for the area — the median across the 78 current wings within 10% of its size is 1,196 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | Starter Front Wing 1600 | 1,600 | -3.0% | 5.50 | +3.8% | 940 | Low aspect |
Specifications
| Family | Ultra Jet |
|---|---|
| Size | Ultra Jet 1650 |
| Area, cm² | 1,650 |
| Area basis | projected |
| Span, mm | 920 |
| Chord, mm | — |
| Aspect ratio | 5.30 |
| Band | Low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, sup, kite, prone |
| Construction | carbon/glass composite |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
