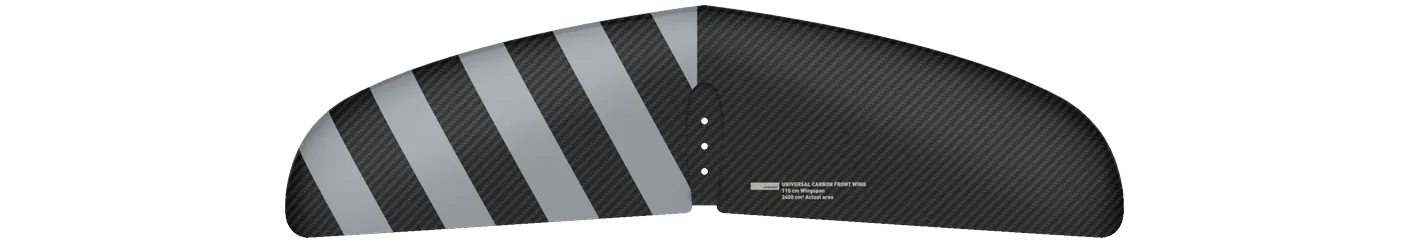

RRD Universal Carbon Front Wing Y26 2400: a legacy wing, no longer in RRD's current range. 2,400 cm², 1,100 mm span, aspect ratio 5.04. The current wings that match it within ±5% area and ±8% aspect ratio, from RRD's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Duotone | Lift 2400 | 2,400 | +0.0% | 5.10 | +1.2% | 1,110 | C1 Low aspect |
| Armstrong | S1 (Step 1) S1 2450 | 2,450 | +2.1% | 4.80 | -4.8% | 1,054 | C1 Low aspect |
| Family | UNIVERSAL CARBON |
|---|---|
| Size | 2400 |
| Area, cm² | 2,400 |
| Area basis | flat |
| Span, mm | 1,100 |
| Chord, mm | 270 |
| Aspect ratio | 5.04 |
| Band | C1 Low aspect |
| Brand files it under | Entry |
| Disciplines | sup, prone, wing, kite, windfoil |
| Construction | Full Carbon |
| Model year | legacy |
| Source | manufacturer |
The brand publishes no aspect ratio; this one is derived from its published span and area (span² ÷ area).
See RRD on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
