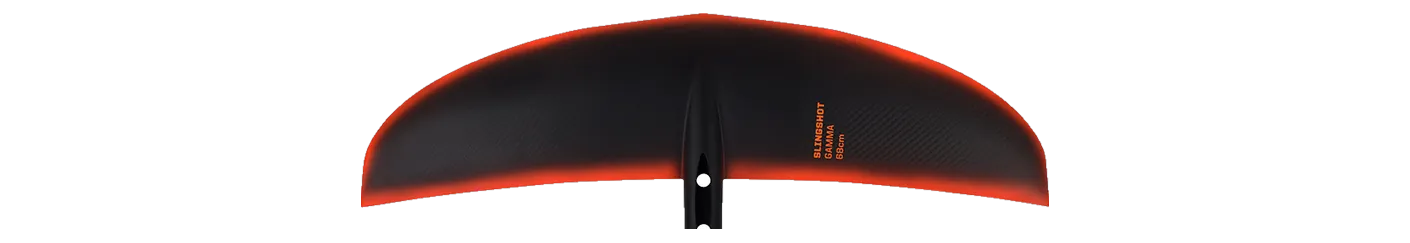

Family Hover Glide Gamma Chord 170 mm Brand’s category Entry Disciplines wake, kite, prone, windfoil carbon · 2019
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Armstrong CF V2 (Carving Freeride) CF950, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
Its 688 mm span is 28% narrower than typical for the area — the median across the 149 current wings within 10% of its size is 950 mm.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | CF V2 (Carving Freeride) CF950 | 950 | -1.0% | 5.00 | +1.4% | 670 | Low aspect |
| Family | Hover Glide Gamma |
|---|---|
| Size | 68 |
| Area, cm² | 960 |
| Area basis | unknown |
| Span, mm | 688 |
| Chord, mm | 170 |
| Aspect ratio | 4.93 |
| Band | Low aspect |
| Brand’s category | Entry |
| Disciplines | wake, kite, prone, windfoil |
| Construction | carbon |
| Model year | 2019 |
| Source | manufacturer · read 2026-10-05 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
