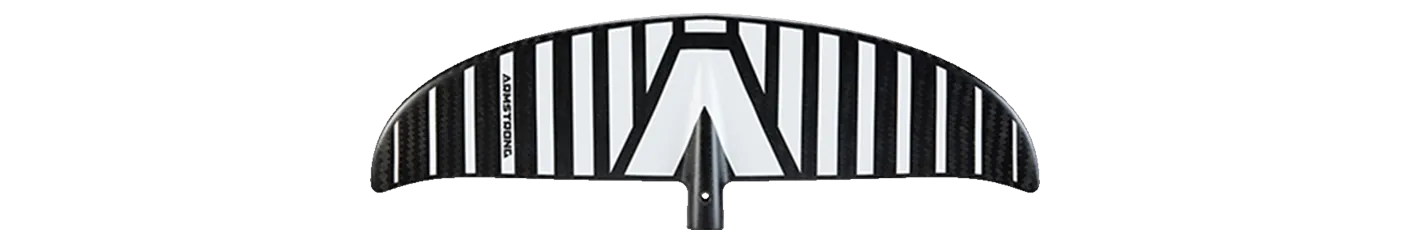

Armstrong CF V2 (Carving Freeride) V2 CF950 hydrofoil front wing: 950 cm², 670 mm span, aspect ratio 5.00, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Armstrong's own published specifications.
No current wing from another brand sits within ±5% of area and ±8% of aspect ratio of this one. It has no direct cross-brand equivalent in the dataset.
| Family | CF V2 |
|---|---|
| Size | V2 CF950 |
| Area, cm² | 950 |
| Area basis | unknown |
| Span, mm | 670 |
| Chord, mm | — |
| Aspect ratio | 5.00 |
| Band | C1 Low aspect |
| Brand files it under | All-round / freeride |
| Disciplines | wing, prone, wake, kite, sup |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | retailer |
The brand publishes this aspect ratio, but its own span and area (span² ÷ area) give a figure 5–10% away. The published number is kept and marked.
See Armstrong on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
