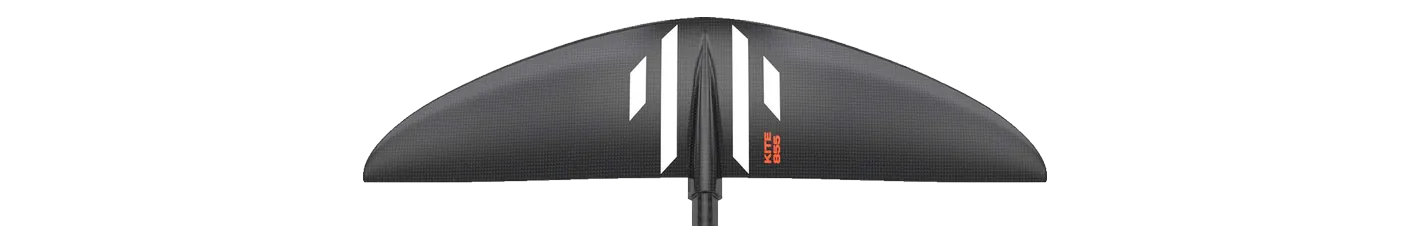

Slingshot One-Lock Kite 855
- 855area, cm²
- 684span, mm
- 5.50aspect ratio
- Lowaspect · AR ≤ 6.0
Family One-Lock Kite Brand’s category Kite Disciplines kite carbon · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis HPS (High Performance Speed) 700, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The One-Lock Kite runs 3 sizes, 755–1,255 cm², and changes proportion as it grows: aspect ratio runs 4.1 at one end of the range to 5.7 at the other, so its sizes differ in shape as well as in area.
Its 684 mm span is 23% narrower than typical for the area — the median across the 126 current wings within 10% of its size is 890 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | HPS (High Performance Speed) 700 | 890 | +4.1% | 5.63 | +2.4% | 700 | Low aspect |
Specifications
| Family | One-Lock Kite |
|---|---|
| Size | 855 |
| Area, cm² | 855 |
| Area basis | unknown |
| Span, mm | 684 |
| Chord, mm | — |
| Aspect ratio | 5.50 |
| Band | Low aspect |
| Brand’s category | Kite |
| Disciplines | kite |
| Construction | carbon |
| Model year | 2026 |
| Source | retailer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. The figures above are read from a retailer's listing rather than Slingshot's own pages, converted to comparable units.
