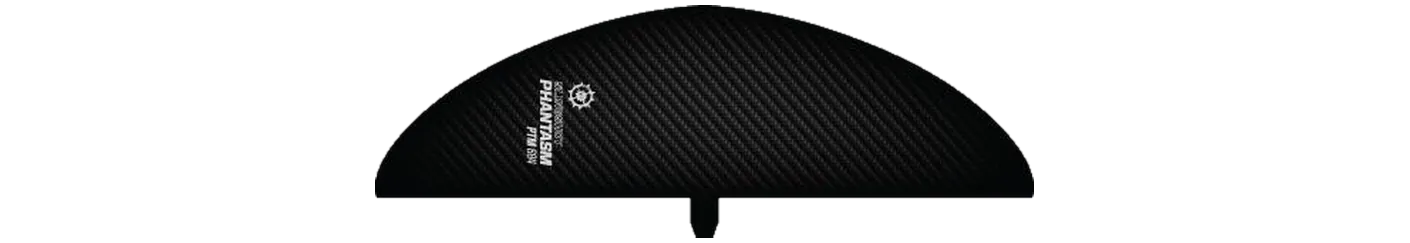

Slingshot PTM 684
- Discontinuedsuperseded or no longer in the brand’s current range
- 952area, cm²
- 684span, mm
- 4.91aspect ratio
- Lowaspect · AR ≤ 6.0
Family Phantasm PTM Brand’s category Surf / carve Disciplines wing, kite, prone carbon · 2022
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Armstrong CF V2 (Carving Freeride) CF950, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Phantasm PTM has run 9 sizes, 655–1,263 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 4.9 at one end of the range to 9.1 at the other, so its sizes differ in shape as well as in area.
Its 684 mm span is 26% narrower than typical for the area — the median across the 116 current wings within 10% of its size is 925 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | CF V2 (Carving Freeride) CF950 | 950 | -0.2% | 5.00 | +1.8% | 670 | Low aspect |
Specifications
| Family | Phantasm PTM |
|---|---|
| Size | 684 |
| Area, cm² | 952 |
| Area basis | unknown |
| Span, mm | 684 |
| Chord, mm | — |
| Aspect ratio | 4.91 |
| Band | Low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, kite, prone |
| Construction | carbon |
| Model year | 2022 |
| Source | manufacturer · read 2026-08-13 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
