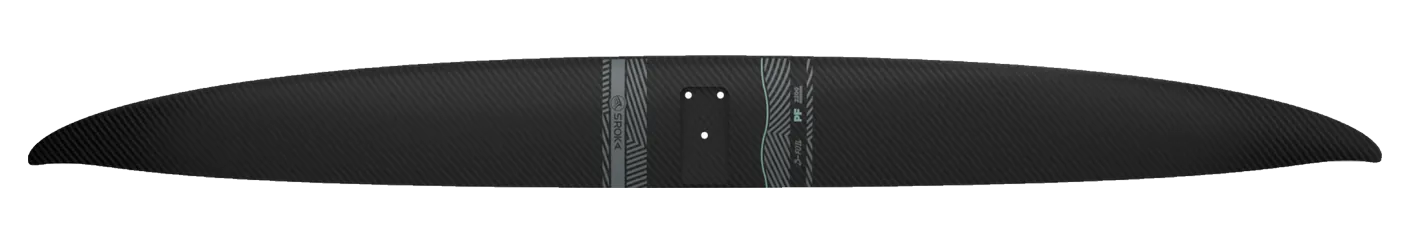

Sroka Pump Foil PF 2200
- 2,200area, cm²
- 1,700span, mm
- 13.20aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Pump Foil Chord 165 mm Brand’s category Pump / dock Disciplines pump carbon prepreg partly high-modulus (carbone prépreg en partie haut module)
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Takoon Pump Pro Front Wing 2300 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Pump Foil runs 3 sizes, 1,500–2,200 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,700 mm span is 21% wider than typical for the area — the median across the 35 current wings within 10% of its size is 1,400 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Code Foils | Kanga Series Front Wing 2220 | 2,220 | +0.9% | 13.00 | -1.5% | 1,700 | Very high aspect |
| Takoon | Pump Pro Front Wing 2300 | 2,300 | +4.5% | 13.00 | -1.5% | 1,735 | Very high aspect |
Specifications
| Family | Pump Foil |
|---|---|
| Size | PF 2200 |
| Area, cm² | 2,200 |
| Area basis | unknown |
| Span, mm | 1,700 |
| Chord, mm | 165 |
| Aspect ratio | 13.20 |
| Band | Very high aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | carbon prepreg partly high-modulus (carbone prépreg en partie haut module) |
| Model year | — |
| Source | manufacturer · read 2026-10-05 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
