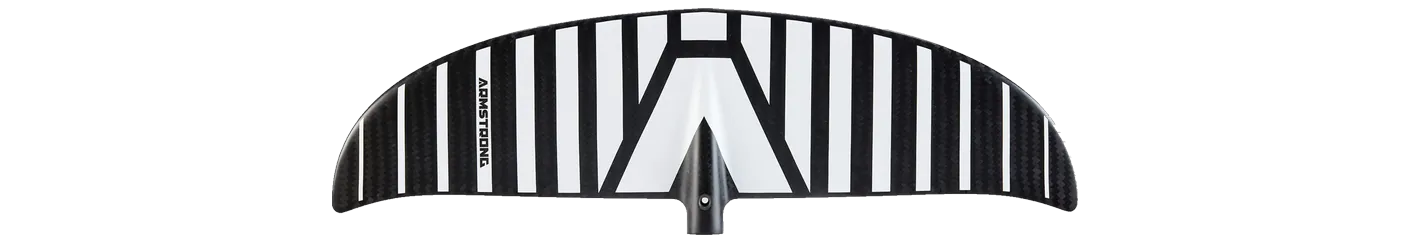

Armstrong CF V2 (Carving Freeride) V2 CF1200 hydrofoil front wing: 1,200 cm², 746 mm span, aspect ratio 4.90, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Armstrong's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | SP (Surf Performance) SP 760 | 1,218 | +1.5% | 5.11 | +4.3% | 760 | C1 Low aspect |
| Family | CF V2 |
|---|---|
| Size | V2 CF1200 |
| Area, cm² | 1,200 |
| Area basis | unknown |
| Span, mm | 746 |
| Chord, mm | — |
| Aspect ratio | 4.90 |
| Band | C1 Low aspect |
| Brand files it under | All-round / freeride |
| Disciplines | wing, prone, wake, kite, sup, downwind |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | retailer |
The brand publishes this aspect ratio, but its own span and area (span² ÷ area) give a figure 5–10% away. The published number is kept and marked.
See Armstrong on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
