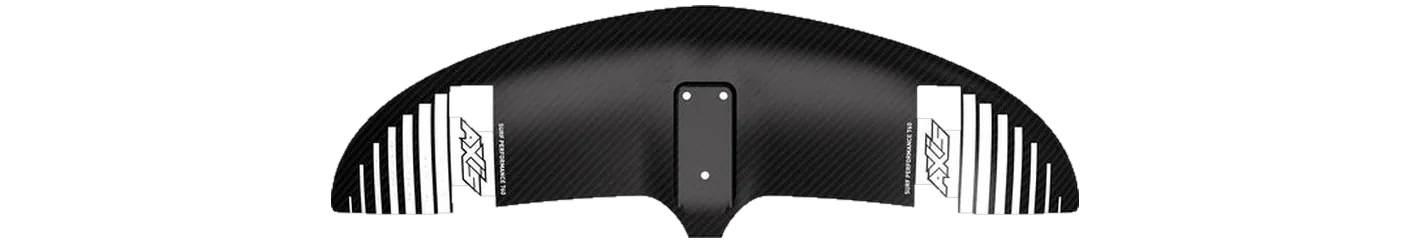

Axis SP (Surf Performance) SP 760 hydrofoil front wing: 1,218 cm², 760 mm span, aspect ratio 5.11, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | CF V2 (Carving Freeride) V2 CF1200 | 1,200 | -1.5% | 4.90 | -4.1% | 746 | C1 Low aspect |
| Slingshot | One-Lock Ease 1250 | 1,250 | +2.6% | 5.30 | +3.7% | 817 | C1 Low aspect |
| Takuma | Kujira Helium Front Wing Kujira Helium 1200 | 1,200 | -1.5% | 5.50 | +7.6% | 815 | C1 Low aspect |
| Family | SP |
|---|---|
| Size | SP 760 |
| Area, cm² | 1,218 |
| Area basis | flat |
| Span, mm | 760 |
| Chord, mm | 190 |
| Aspect ratio | 5.11 |
| Band | C1 Low aspect |
| Brand files it under | Surf / carve |
| Disciplines | prone, kite, tow |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand publishes this aspect ratio, but its own span and area (span² ÷ area) give a figure 5–10% away. The published number is kept and marked.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
