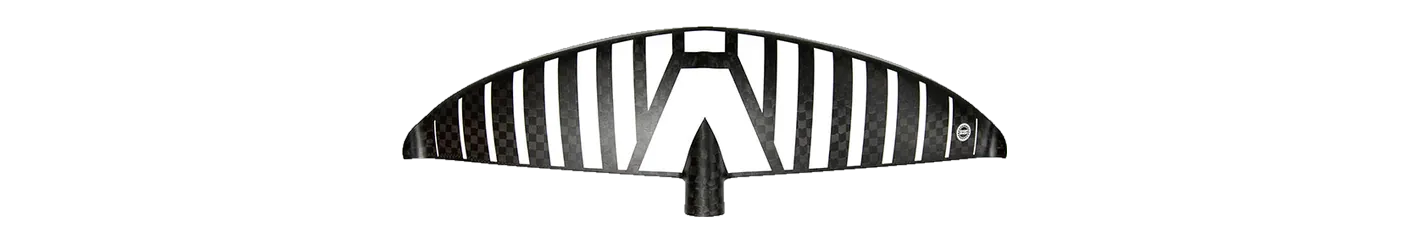

Armstrong HS (High Speed) HS625
- Discontinuedsuperseded or no longer in the brand’s current range
- 626area, cm²
- 605span, mm
- 5.85aspect ratio
- Lowaspect · AR ≤ 6.0
Family HS Brand’s category All-round / freeride Disciplines prone, sup, wing carbon · 2020-2023
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis Spitfire 620, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The HS has run 6 sizes, 626–1,850 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 4.8 at one end of the range to 5.8 at the other, so its sizes differ in shape as well as in area.
Its 605 mm span is 22% narrower than typical for the area — the median across the 81 current wings within 10% of its size is 780 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | Spitfire 620 | 628 | +0.3% | 6.12 | +4.6% | 620 | Mid-low aspect |
| Naish | Kite Foil Front Wing 650 | 650 | +3.8% | 6.30 | +7.7% | 640 | Mid-low aspect |
Specifications
| Family | HS |
|---|---|
| Size | HS625 |
| Area, cm² | 626 |
| Area basis | unknown |
| Span, mm | 605 |
| Chord, mm | — |
| Aspect ratio | 5.85 |
| Band | Low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | prone, sup, wing |
| Construction | carbon |
| Model year | 2020-2023 |
| Source | retailer |
The brand publishes no aspect ratio; this one is derived from its published span and area (span² ÷ area).
Data current to August 2026. The figures above are read from a retailer's listing rather than Armstrong's own pages, converted to comparable units.
