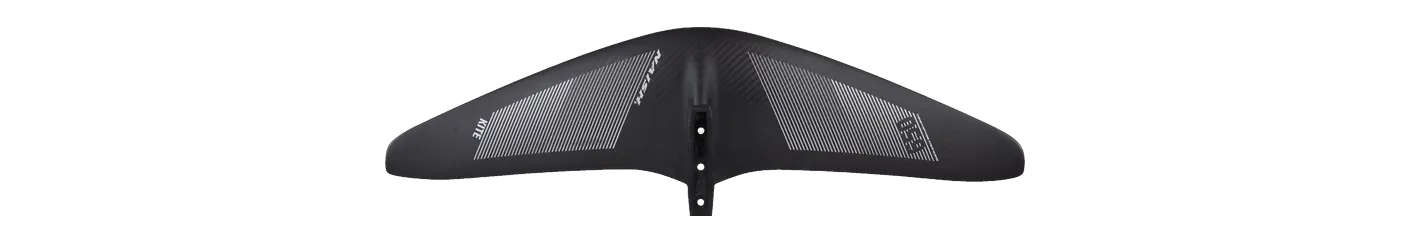

Naish Kite Foil Front Wing 650
- 650area, cm²
- 640span, mm
- 6.30aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Kite Foil Area basis projected Brand’s category Kite Disciplines kite 100% prepreg 3K carbon outer, dual expansion core, UD carbon and glass laminate · 2024-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Axis Spitfire 620 (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Kite Foil Front Wing runs 3 sizes, 650–980 cm², and changes proportion as it grows: aspect ratio runs 4.2 at one end of the range to 6.3 at the other, so its sizes differ in shape as well as in area.
Its 640 mm span is 18% narrower than typical for the area — the median across the 98 current wings within 10% of its size is 780 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| RRD | Spinner Pro Front Wing Y31 650 | 650 | +0.0% | 6.40 | +1.6% | 650 | Mid-low aspect |
| F-One | ESCAPE HM Carbon 630 | 630 | -3.1% | 6.50 | +3.2% | 640 | Mid-low aspect |
| Axis | Spitfire 620 | 628 | -3.4% | 6.12 | -2.9% | 620 | Mid-low aspect |
| GONG | Ypra Surf-Freestyle V3 Atmo S | 620 | -4.6% | 6.80 | +7.9% | 650 | Mid-low aspect |
| GONG | Ypra Surf-Freestyle V3 Atmo M | 680 | +4.6% | 6.80 | +7.9% | 680 | Mid-low aspect |
Specifications
| Family | Kite Foil |
|---|---|
| Size | Kite Foil 650 |
| Area, cm² | 650 |
| Area basis | projected |
| Span, mm | 640 |
| Chord, mm | — |
| Aspect ratio | 6.30 |
| Band | Mid-low aspect |
| Brand’s category | Kite |
| Disciplines | kite |
| Construction | 100% prepreg 3K carbon outer, dual expansion core, UD carbon and glass laminate |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
