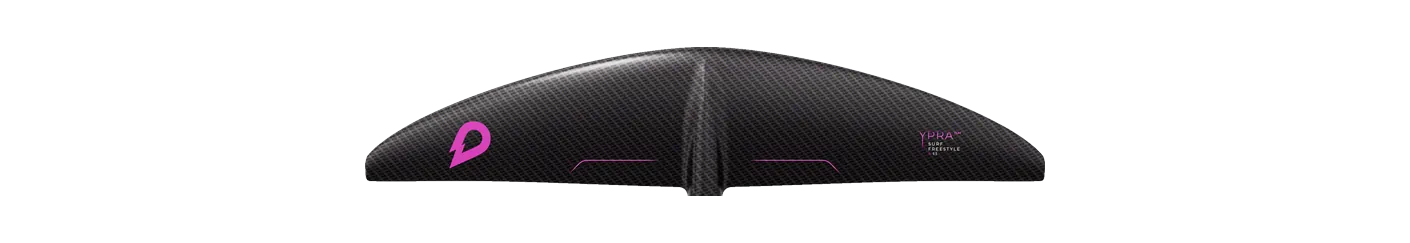

GONG Ypra Surf-Freestyle V3 Atmo M

680area, cm²
680span, mm
6.80aspect ratio
Mid-lowaspect · AR 6.0 – 8.5

Family Ypra Chord 139 mm Brand’s category Surf / carve Disciplines wing, kite, prone Pro Team / 3K Texalium clear carbon prepreg · 2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Lift Foils 105 Havoc Front Wing, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

5RRD Spinner Pro Front Wing Y31 650no outline6RRD Universal Mantaray Front Wing Y30 650no outlineSpecs · table ↓

GONG Ypra Surf-Freestyle V3 Atmo M · 680 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Lift Foils 105 Havoc Front Wing · 699 mm

The Ypra Surf-Freestyle V3 Atmo runs 5 sizes, 479–740 cm²; aspect ratio moves 6.8–7.5 across the range.

Its 680 mm span is 13% narrower than typical for the area — the median across the 102 current wings within 10% of its size is 780 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the GONG Ypra Surf-Freestyle V3 Atmo M, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Lift Foils	105 Havoc Front Wing	677	-0.4%	7.20	+5.9%	699	Mid-low aspect
Cabrinha	Rebound 650	650	-4.4%	6.90	+1.5%	670	Mid-low aspect
Duotone	Carve 3.0 D/LAB 650	650	-4.4%	7.20	+5.9%	680	Mid-low aspect
Naish	Ultra Jet Front Wing 650	650	-4.4%	7.11	+4.6%	680	Mid-low aspect
RRD	Spinner Pro Front Wing Y31 650	650	-4.4%	6.40	-5.9%	650	Mid-low aspect
RRD	Universal Mantaray Front Wing Y30 650	650	-4.4%	6.90	+1.5%	670	Mid-low aspect
Naish	Kite Foil Front Wing 650	650	-4.4%	6.30	-7.4%	640	Mid-low aspect

Specifications

Every figure is GONG's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Ypra
Size	M
Area, cm²	680
Area basis	unknown
Span, mm	680
Chord, mm	139
Aspect ratio	6.80
Band	Mid-low aspect
Brand’s category	Surf / carve
Disciplines	wing, kite, prone
Construction	Pro Team / 3K Texalium clear carbon prepreg
Model year	2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
