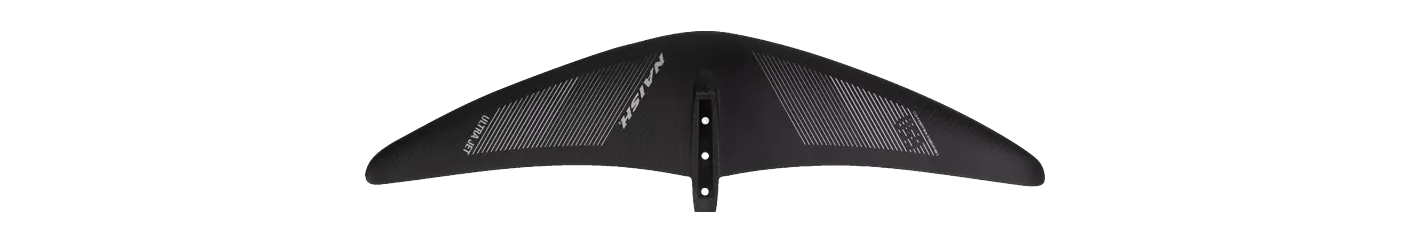

Naish Ultra Jet Front Wing 650
- 650area, cm²
- 680span, mm
- 7.11aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Ultra Jet Area basis projected Brand’s category All-round / freeride Disciplines wing, sup, kite, prone carbon/glass composite · 2024-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Duotone Carve 3.0 D/LAB 650, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ultra Jet Front Wing runs 8 sizes, 650–2,450 cm², and changes proportion as it grows: aspect ratio runs 4.1 at one end of the range to 7.1 at the other, so its sizes differ in shape as well as in area.
Its 680 mm span is 13% narrower than typical for the area — the median across the 98 current wings within 10% of its size is 780 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Duotone | Carve 3.0 D/LAB 650 | 650 | +0.0% | 7.20 | +1.3% | 680 | Mid-low aspect |
| Cabrinha | Rebound 650 | 650 | +0.0% | 6.90 | -3.0% | 670 | Mid-low aspect |
| RRD | Universal Mantaray Front Wing Y30 650 | 650 | +0.0% | 6.90 | -3.0% | 670 | Mid-low aspect |
| GONG | Ypra Freestyle Micro V3 Atmo M | 660 | +1.5% | 7.40 | +4.1% | 700 | Mid-low aspect |
| Takuma | Kujira II Front Wing 650 | 650 | +0.0% | 7.40 | +4.1% | 690 | Mid-low aspect |
| Sroka | S-Foil 670 S HA | 670 | +3.1% | 7.50 | +5.5% | 700 | Mid-low aspect |
| Sabfoil | 707 Balz Muller Limited Müller | 661 | +1.7% | 7.55 | +6.2% | 707 | Mid-low aspect |
| Lift Foils | 105 Havoc Front Wing | 677 | +4.2% | 7.20 | +1.3% | 699 | Mid-low aspect |
| GONG | Ypra Surf-Freestyle V3 S | 620 | -4.6% | 6.81 | -4.2% | 650 | Mid-low aspect |
| GONG | Ypra Surf-Freestyle V3 Atmo S | 620 | -4.6% | 6.80 | -4.4% | 650 | Mid-low aspect |
| GONG | Ypra Surf-Freestyle V3 Atmo M | 680 | +4.6% | 6.80 | -4.4% | 680 | Mid-low aspect |
Specifications
| Family | Ultra Jet |
|---|---|
| Size | Ultra Jet 650 |
| Area, cm² | 650 |
| Area basis | projected |
| Span, mm | 680 |
| Chord, mm | — |
| Aspect ratio | 7.11 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, sup, kite, prone |
| Construction | carbon/glass composite |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand publishes no aspect ratio; this one is derived from its published span and area (span² ÷ area).
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
