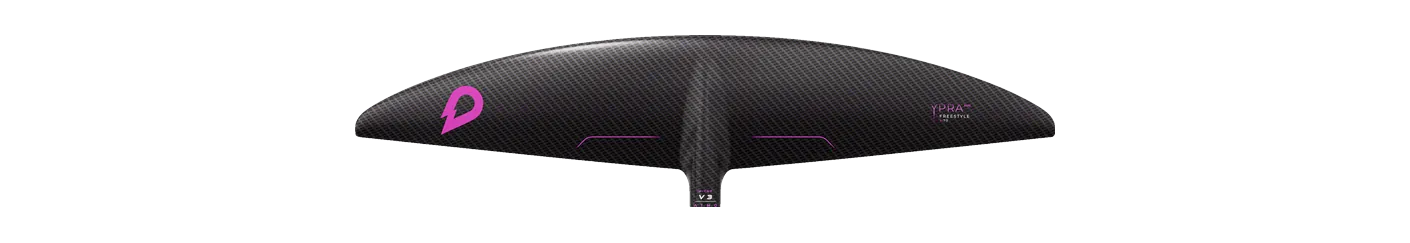

GONG Ypra Freestyle Micro V3 Atmo M
- 660area, cm²
- 700span, mm
- 7.40aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Ypra Chord 133 mm Brand’s category Surf / carve Disciplines wing, kite Pro Team / 3K Texalium clear carbon prepreg · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Sabfoil 707 Balz Muller Limited Müller, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ypra Freestyle Micro V3 Atmo runs 3 sizes, 460–700 cm²; aspect ratio moves 7.0–7.8 across the range.
Its 700 mm span is 10% narrower than typical for the area — the median across the 102 current wings within 10% of its size is 780 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Sabfoil | 707 Balz Muller Limited Müller | 661 | +0.2% | 7.55 | +2.0% | 707 | Mid-low aspect |
| Sroka | S-Foil 670 S HA | 670 | +1.5% | 7.50 | +1.4% | 700 | Mid-low aspect |
| Takuma | Kujira II Front Wing 650 | 650 | -1.5% | 7.40 | +0.0% | 690 | Mid-low aspect |
| Duotone | Carve 3.0 D/LAB 650 | 650 | -1.5% | 7.20 | -2.7% | 680 | Mid-low aspect |
| Naish | Ultra Jet Front Wing 650 | 650 | -1.5% | 7.11 | -3.9% | 680 | Mid-low aspect |
| Lift Foils | 105 Havoc Front Wing | 677 | +2.6% | 7.20 | -2.7% | 699 | Mid-low aspect |
| F-One | SUSHI UHM Carbon 680 | 680 | +3.0% | 7.70 | +4.1% | 725 | Mid-low aspect |
| Cabrinha | Rebound 650 | 650 | -1.5% | 6.90 | -6.8% | 670 | Mid-low aspect |
| RRD | Universal Mantaray Front Wing Y30 650 | 650 | -1.5% | 6.90 | -6.8% | 670 | Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 690 | 690 | +4.5% | 7.50 | +1.4% | 720 | Mid-low aspect |
Specifications
| Family | Ypra |
|---|---|
| Size | M |
| Area, cm² | 660 |
| Area basis | unknown |
| Span, mm | 700 |
| Chord, mm | 133 |
| Aspect ratio | 7.40 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, kite |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
