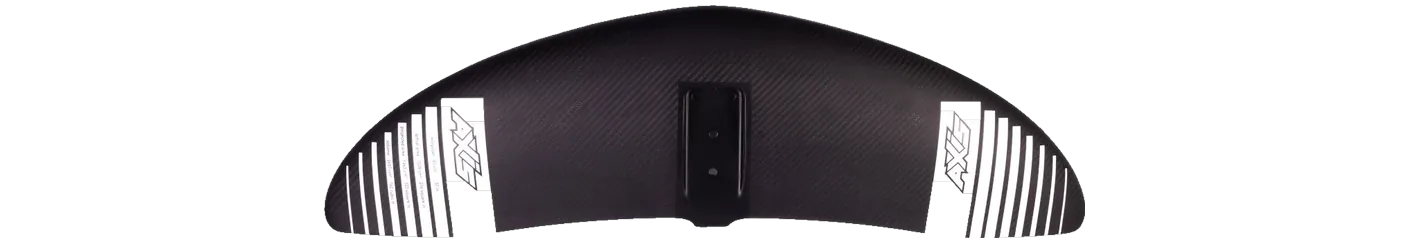

Axis S-Series Carbon Front Wing 820mm
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,528area, cm²
- 820span, mm
- 4.66aspect ratio
- Lowaspect · AR ≤ 6.0
Family S-Series Area basis flat Chord 223 mm Brand’s category Surf / carve Disciplines sup, prone, pump, downwind, wake, kite carbon · 2020-2023
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Slingshot One-Lock Ease 1550, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The S-Series Carbon Front Wing has run 6 sizes, 1,120–2,051 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 4.4 at one end of the range to 6.8 at the other, so its sizes differ in shape as well as in area.
Its 820 mm span is 27% narrower than typical for the area — the median across the 75 current wings within 10% of its size is 1,120 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Slingshot | One-Lock Ease 1550 | 1,550 | +1.4% | 4.80 | +3.0% | 866 | Low aspect |
| Takuma | LOL ProFoil Front Wing 1600 | 1,600 | +4.7% | 4.68 | +0.4% | 865 | Low aspect |
Specifications
| Family | S-Series |
|---|---|
| Size | 820mm |
| Area, cm² | 1,528 |
| Area basis | flat |
| Span, mm | 820 |
| Chord, mm | 223 |
| Aspect ratio | 4.66 |
| Band | Low aspect |
| Brand’s category | Surf / carve |
| Disciplines | sup, prone, pump, downwind, wake, kite |
| Construction | carbon |
| Model year | 2020-2023 |
| Source | manufacturer |
The brand publishes this aspect ratio, but its own span and area (span² ÷ area) give a figure 5–10% away. The published number is kept and marked.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
