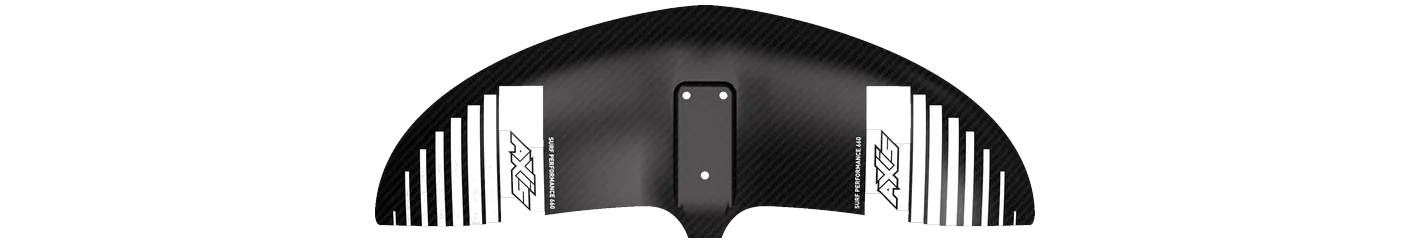

Axis SP (Surf Performance) 660
- 1,113area, cm²
- 660span, mm
- 3.91aspect ratio
- Lowaspect · AR ≤ 6.0
Family SP Area basis flat Chord 200 mm Brand’s category Surf / carve Disciplines prone, kite, tow carbon · 2025-2026
No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Naish Kite Foil Front Wing 980 (#1) is already over it. Select a numbered wing to draw it — up to three at a time.
The SP runs 3 sizes, 1,113–1,293 cm², and changes proportion as it grows: aspect ratio runs 3.9 at one end of the range to 6.1 at the other, so its sizes differ in shape as well as in area.
Its 660 mm span is 34% narrower than typical for the area — the median across the 110 current wings within 10% of its size is 1,005 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 2.7× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Kite Foil Front Wing 980 | 980 | -11.9% | 4.20 | +7.4% | 640 | Low aspect |
| Slingshot | One-Lock Kite 1255 | 1,255 | +12.8% | 4.10 | +4.9% | 715 | Low aspect |
| F-One | IC6 950 V.3 | 965 | -13.3% | 4.40 | +12.5% | 650 | Low aspect |
Specifications
| Family | SP |
|---|---|
| Size | SP 660 |
| Area, cm² | 1,113 |
| Area basis | flat |
| Span, mm | 660 |
| Chord, mm | 200 |
| Aspect ratio | 3.91 |
| Band | Low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, kite, tow |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio contradicts its own span and area by more than 10%, so the geometric figure (span² ÷ area) is used instead, and the conflict is noted.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
