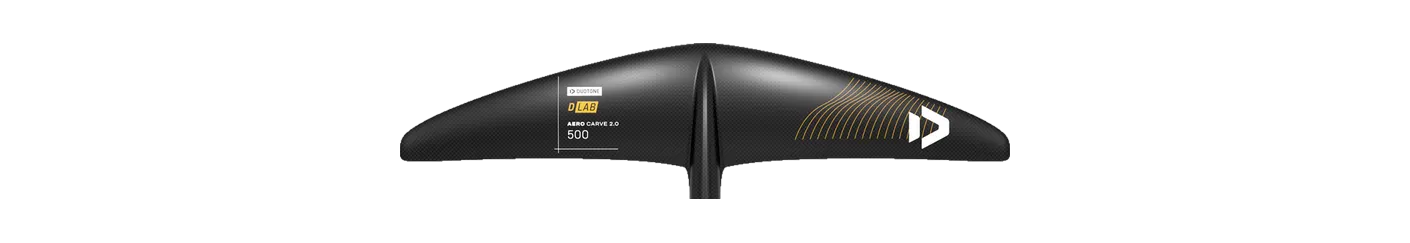

Duotone Aero Carve 2.0 D/LAB 500
- Discontinuedsuperseded or no longer in the brand’s current range
- 500area, cm²
- 610span, mm
- 7.50aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Aero Carve Brand’s category Surf / carve Disciplines wing, prone, kite D/LAB · 2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Armstrong MA Mk II (Mid Aspect) MA490 (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Aero Carve 2.0 D/LAB has run 4 sizes, 500–1,100 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 6.0 at one end of the range to 7.5 at the other, so its sizes differ in shape as well as in area.
Its 610 mm span is 10% narrower than typical for the area — the median across the 41 current wings within 10% of its size is 678 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| North | Sonar MA500v2 | 500 | +0.0% | 7.90 | +5.3% | 630 | Mid-low aspect |
| GONG | Ypra Surf-Freestyle V3 XXS | 480 | -4.0% | 7.50 | +0.0% | 600 | Mid-low aspect |
| Armstrong | MA Mk II (Mid Aspect) MA490 | 490 | -2.0% | 8.00 | +6.7% | 632 | Mid-low aspect |
| GONG | Ypra Surf-Freestyle V3 Atmo XXS | 479 | -4.2% | 7.50 | +0.0% | 600 | Mid-low aspect |
Specifications
| Family | Aero Carve |
|---|---|
| Size | 500 |
| Area, cm² | 500 |
| Area basis | unknown |
| Span, mm | 610 |
| Chord, mm | — |
| Aspect ratio | 7.50 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone, kite |
| Construction | D/LAB |
| Model year | 2024 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
