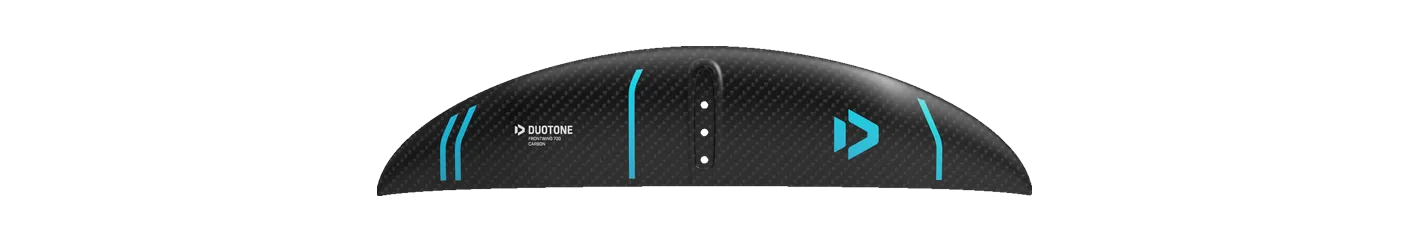

Duotone Spirit GT 700 700: a legacy wing, no longer in Duotone's current range. 700 cm², 655 mm span, aspect ratio 6.13. The current wings that match it within ±5% area and ±8% aspect ratio, from Duotone's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Cabrinha | Fusion X-Series MkII X700 | 700 | +0.0% | 5.85 | -4.6% | 640 | C1 Low aspect |
| Axis | Spitfire Spitfire 670 | 721 | +3.0% | 6.34 | +3.4% | 670 | C2 Mid-low aspect |
| Family | Spirit GT |
|---|---|
| Size | 700 |
| Area, cm² | 700 |
| Area basis | unknown |
| Span, mm | 655 |
| Chord, mm | 139 |
| Aspect ratio | 6.13 |
| Band | C2 Mid-low aspect |
| Brand files it under | All-round / freeride |
| Disciplines | kite, wing |
| Construction | carbon |
| Model year | 2020 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Duotone on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
