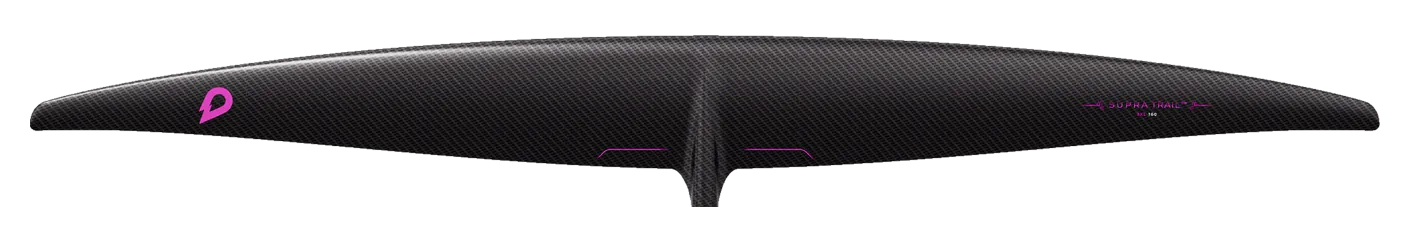

GONG Supra Trail V3 Atmo XL
- 1,250area, cm²
- 1,350span, mm
- 14.60aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Trail Chord 133 mm Brand’s category Pump / dock Disciplines pump Pro Team / 3K Texalium clear carbon prepreg · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis Fireball ULTRA 1350, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Supra Trail V3 Atmo runs 5 sizes, 1,250–2,250 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,350 mm span is 31% wider than typical for the area — the median across the 109 current wings within 10% of its size is 1,030 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | Fireball ULTRA 1350 | 1,309 | +4.7% | 13.93 | -4.6% | 1,350 | Very high aspect |
Specifications
| Family | Trail |
|---|---|
| Size | XL |
| Area, cm² | 1,250 |
| Area basis | unknown |
| Span, mm | 1,350 |
| Chord, mm | 133 |
| Aspect ratio | 14.60 |
| Band | Very high aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
