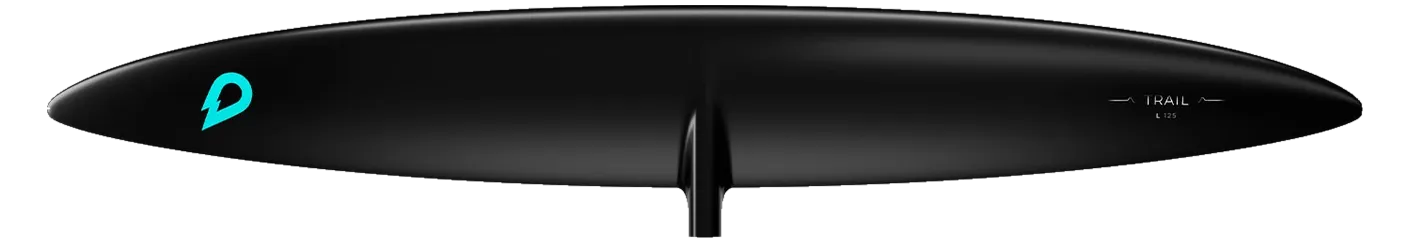

GONG Trail V3 XXL
- 2,240area, cm²
- 1,450span, mm
- 9.40aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Trail Area basis projected Chord 202 mm Brand’s category Pump / dock Disciplines pump Perf / fiberglass · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Duotone Amp SLS 2145, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Trail V3 runs 3 sizes, 1,660–2,240 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,450 mm span is 7% wider than typical for the area — the median across the 28 current wings within 10% of its size is 1,355 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Duotone | Amp SLS 2145 | 2,145 | -4.2% | 9.60 | +2.1% | 1,430 | High aspect |
Specifications
| Family | Trail |
|---|---|
| Size | XXL |
| Area, cm² | 2,240 |
| Area basis | projected |
| Span, mm | 1,450 |
| Chord, mm | 202 |
| Aspect ratio | 9.40 |
| Band | Mid aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | Perf / fiberglass |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
