GONG Veloce XTR V3 Atmo L

900area, cm²
1,230span, mm
16.90aspect ratio
Ultra highaspect · AR > 15.0

Family Veloce Chord 114 mm Brand’s category Downwind Disciplines downwind, race Pro Team / 3K Texalium clear carbon prepreg · 2026

Drawn to scale

true relative scale

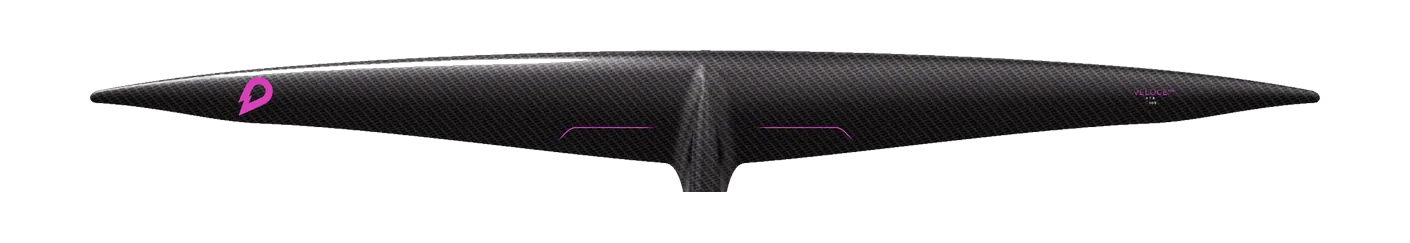

The GONG Veloce XTR V3 Atmo L’s planform, traced from GONG’s own plan-view photograph.

GONG Veloce XTR V3 Atmo L · 1,230 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line).

The Veloce XTR V3 Atmo runs 4 sizes, 600–900 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 1,230 mm span is 38% wider than typical for the area — the median across the 131 current wings within 10% of its size is 890 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the GONG Veloce XTR V3 Atmo L, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
F-One	MOMENTUM UHM 916	916	+1.8%	16.50	-2.4%	1,220	Ultra high aspect

Specifications

Every figure is GONG's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Veloce
Size	L
Area, cm²	900
Area basis	unknown
Span, mm	1,230
Chord, mm	114
Aspect ratio	16.90
Band	Ultra high aspect
Brand’s category	Downwind
Disciplines	downwind, race
Construction	Pro Team / 3K Texalium clear carbon prepreg
Model year	2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
