GONG Veloce XTR V3 Atmo M
- 800area, cm²
- 1,160span, mm
- 16.90aspect ratio
- Ultra highaspect · AR > 15.0
Family Veloce Chord 107 mm Brand’s category Downwind Disciplines downwind, race Pro Team / 3K Texalium clear carbon prepreg · 2026

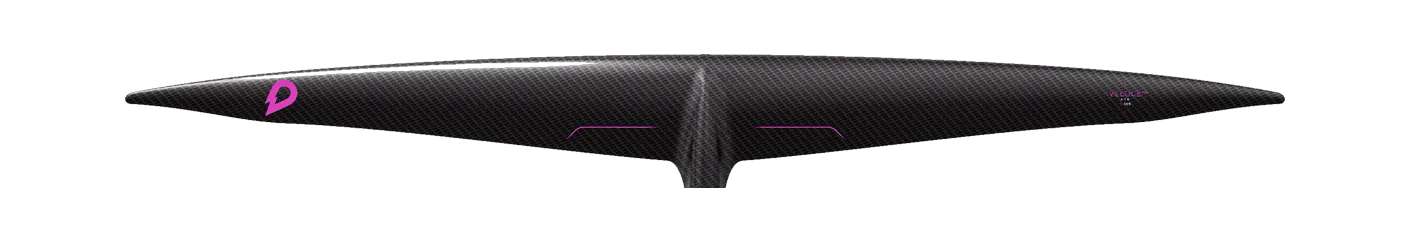

The GONG Veloce XTR V3 Atmo M’s planform, traced from GONG’s own plan-view photograph.
The Veloce XTR V3 Atmo runs 4 sizes, 600–900 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,160 mm span is 36% wider than typical for the area — the median across the 123 current wings within 10% of its size is 850 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | MOMENTUM UHM 816 | 816 | +2.0% | 16.50 | -2.4% | 1,150 | Ultra high aspect |
Specifications
| Family | Veloce |
|---|---|
| Size | M |
| Area, cm² | 800 |
| Area basis | unknown |
| Span, mm | 1,160 |
| Chord, mm | 107 |
| Aspect ratio | 16.90 |
| Band | Ultra high aspect |
| Brand’s category | Downwind |
| Disciplines | downwind, race |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
