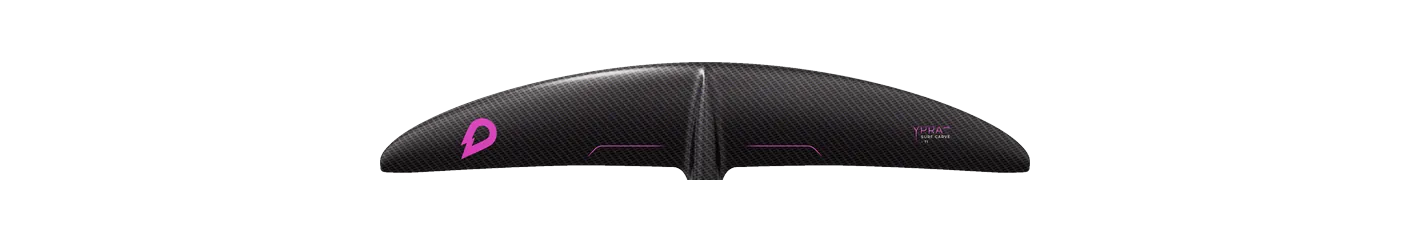

GONG Ypra Surf Carve V3 Atmo XS
- 520area, cm²
- 650span, mm
- 8.20aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Ypra Chord 105 mm Brand’s category Surf / carve Disciplines prone, wing, sup Pro Team / 3K Texalium clear carbon prepreg · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Levitaz Front Wing FS 540, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ypra Surf Carve V3 Atmo runs 4 sizes, 520–820 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 650 mm span is 6% narrower than typical for the area — the median across the 46 current wings within 10% of its size is 690 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Levitaz | Front Wing FS 540 | 540 | +3.8% | 8.40 | +2.4% | 670 | Mid-low aspect |
| North | Sonar MA500v2 | 500 | -3.8% | 7.90 | -3.7% | 630 | Mid-low aspect |
Specifications
| Family | Ypra |
|---|---|
| Size | XS |
| Area, cm² | 520 |
| Area basis | unknown |
| Span, mm | 650 |
| Chord, mm | 105 |
| Aspect ratio | 8.20 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, wing, sup |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
