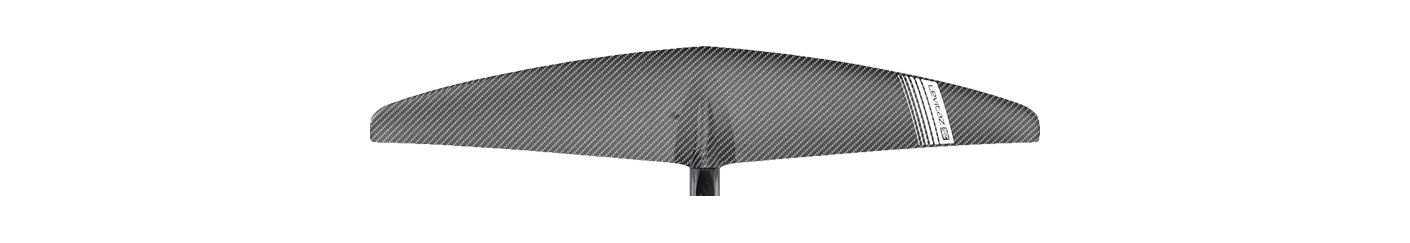

Levitaz Front Wing FS 540
- 540area, cm²
- 670span, mm
- 8.40aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Free Series Brand’s category All-round / freeride Disciplines kite, wing, prone HM carbon with integrated titanium interface · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Duotone Blitz D/LAB 550, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Free Series runs 4 sizes, 540–900 cm², and changes proportion as it grows: aspect ratio runs 8.4 at one end of the range to 13.3 at the other, so its sizes differ in shape as well as in area.
Its 670 mm span is 4% narrower than typical for the area — the median across the 53 current wings within 10% of its size is 700 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Duotone | Blitz D/LAB 550 | 550 | +1.9% | 8.60 | +2.4% | 680 | Mid aspect |
| F-One | SK8 HM Carbon (T2) 550 | 550 | +1.9% | 8.20 | -2.4% | 670 | Mid-low aspect |
| Sabfoil | Razor PRO 675 | 550 | +1.9% | 8.40 | +0.0% | 680 | Mid-low aspect |
| Sroka | S-Foil 550 S HA | 550 | +1.9% | 8.30 | -1.2% | 678 | Mid-low aspect |
| Takoon | Flare Front Wing 550 | 550 | +1.9% | 8.30 | -1.2% | 660 | Mid-low aspect |
| Sabfoil | Medusa PRO 669 | 548 | +1.5% | 8.14 | -3.1% | 669 | Mid-low aspect |
| KT Foiling | Halo 550 | 550 | +1.9% | 8.00 | -4.8% | 665 | Mid-low aspect |
| RRD | Thunder Front Wing Y30 550 | 550 | +1.9% | 8.00 | -4.8% | 660 | Mid-low aspect |
| GONG | Ypra Surf Carve V3 Atmo XS | 520 | -3.7% | 8.20 | -2.4% | 650 | Mid-low aspect |
| Sabfoil | Blade 700 | 552 | +2.2% | 8.90 | +6.0% | 700 | Mid aspect |
| Axis | ART (AXIS Research Team) 699 | 556 | +3.0% | 9.00 | +7.1% | 699 | Mid aspect |
| Duotone | Crest D/LAB 550 | 550 | +1.9% | 9.00 | +7.1% | 700 | Mid aspect |
| Sabfoil | Blackbird 700 Blade | 557 | +3.1% | 9.05 | +7.7% | 700 | Mid aspect |
Specifications
| Family | Free Series |
|---|---|
| Size | FS 540 |
| Area, cm² | 540 |
| Area basis | unknown |
| Span, mm | 670 |
| Chord, mm | — |
| Aspect ratio | 8.40 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | kite, wing, prone |
| Construction | HM carbon with integrated titanium interface |
| Model year | 2026 |
| Source | manufacturer · read 2026-09-14 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
