Fast Bobby · wings · Levitaz · discontinued

Levitaz Bionic 500

Discontinuedsuperseded or no longer in the brand’s current range
500area, cm²
640span, mm
8.50aspect ratio
Mid-lowaspect · AR 6.0 – 8.5

Family Bionic Brand’s category Race / freerace Disciplines kite, race 2022-2023

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Fluid H V3 FG 3XS, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

6North Sonar MA500v2no outlineSpecs · table ↓

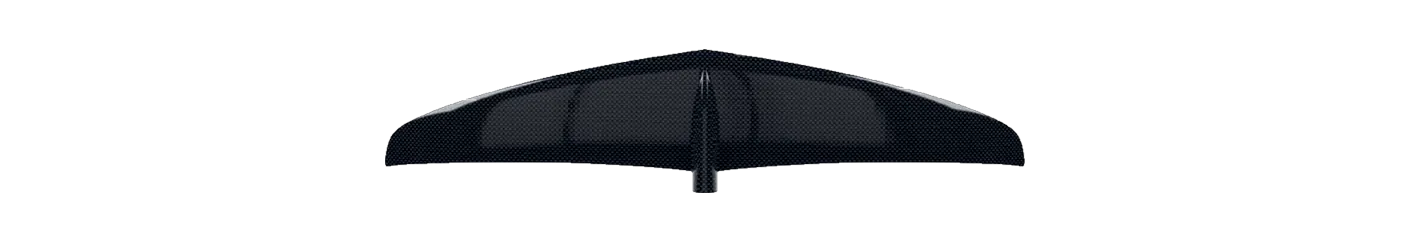

Levitaz Bionic 500 · 640 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ GONG Fluid H V3 FG 3XS · 650 mm

Its 640 mm span is 6% narrower than typical for the area — the median across the 41 current wings within 10% of its size is 678 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Levitaz Bionic 500, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
GONG	Fluid H V3 FG 3XS	510	+2.0%	8.40	-1.2%	650	Mid-low aspect
GONG	Fluid V3 Atmo 3XS (Team / Carbon HM)	510	+2.0%	8.70	+2.4%	660	Mid aspect
GONG	Ypra Slalom V3 Atmo XXS	500	+0.0%	8.90	+4.7%	670	Mid aspect
Armstrong	MA Mk II (Mid Aspect) MA490	490	-2.0%	8.00	-5.9%	632	Mid-low aspect
GONG	Ypra Surf Carve V3 Atmo XS	520	+4.0%	8.20	-3.5%	650	Mid-low aspect
North	Sonar MA500v2	500	+0.0%	7.90	-7.1%	630	Mid-low aspect

Specifications

Every figure is Levitaz's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Bionic
Size	500
Area, cm²	500
Area basis	unknown
Span, mm	640
Chord, mm	—
Aspect ratio	8.50
Band	Mid-low aspect
Brand’s category	Race / freerace
Disciplines	kite, race
Construction	—
Model year	2022-2023
Source	manufacturer · read 2026-09-14

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
