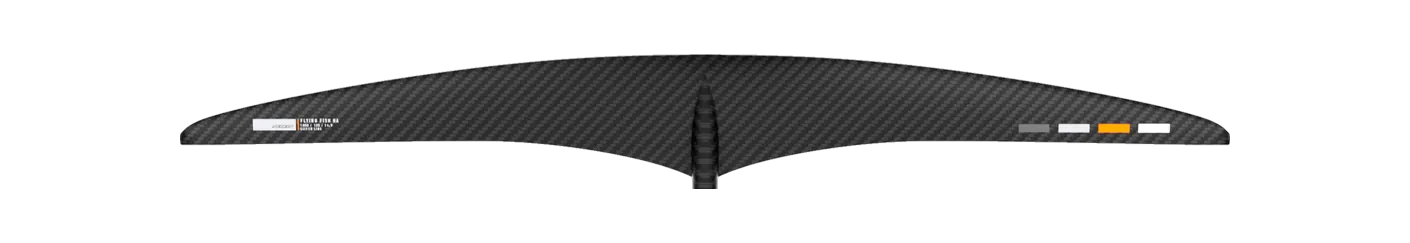

RRD Flying Fish HA Front Wing Y31 750
- 750area, cm²
- 1,050span, mm
- 14.70aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family FLYING FISH HA Brand’s category Downwind Disciplines downwind, pump M40 and M60 high-modulus carbon prepreg
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the AFS Ultra Front Wing 750, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Flying Fish HA Front Wing Y31 runs 3 sizes, 750–1,050 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,050 mm span is 27% wider than typical for the area — the median across the 129 current wings within 10% of its size is 830 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| AFS | Ultra Front Wing 750 | 750 | +0.0% | 15.00 | +2.0% | 1,060 | Very high aspect |
| GONG | Veloce DW V3 Atmo S | 750 | +0.0% | 14.10 | -4.1% | 1,030 | Very high aspect |
| KT Foiling | Solus 775 | 775 | +3.3% | 14.00 | -4.8% | 1,040 | Very high aspect |
Specifications
| Family | FLYING FISH HA |
|---|---|
| Size | 750 |
| Area, cm² | 750 |
| Area basis | unknown |
| Span, mm | 1,050 |
| Chord, mm | — |
| Aspect ratio | 14.70 |
| Band | Very high aspect |
| Brand’s category | Downwind |
| Disciplines | downwind, pump |
| Construction | M40 and M60 high-modulus carbon prepreg |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
