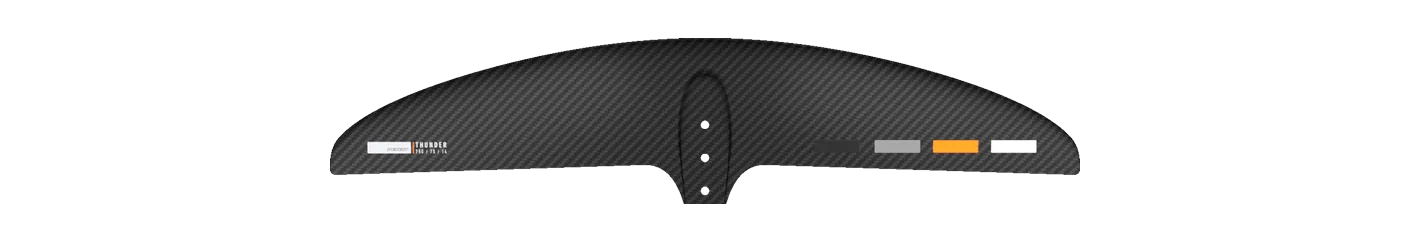

RRD Thunder Front Wing Y30 750
- 750area, cm²
- 750span, mm
- 7.50aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family THUNDER Brand’s category Surf / carve Disciplines wing, prone Full Carbon
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the F-One SUSHI UHM Carbon 740, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Thunder Front Wing Y30 runs 5 sizes, 550–950 cm²; aspect ratio moves 7.5–8.0 across the range.
Its 750 mm span is 10% narrower than typical for the area — the median across the 129 current wings within 10% of its size is 830 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | SUSHI UHM Carbon 740 | 740 | -1.3% | 7.70 | +2.7% | 755 | Mid-low aspect |
| F-One | SK8 HM Carbon (T2) 750 | 750 | +0.0% | 8.00 | +6.7% | 775 | Mid-low aspect |
| Lift Foils | 121 Havoc Front Wing | 774 | +3.2% | 7.00 | -6.7% | 737 | Mid-low aspect |
| Unifoil | Aggression 115 | 741 | -1.2% | 8.00 | +6.7% | 760 | Mid-low aspect |
| Cabrinha | Whippit 750 | 750 | +0.0% | 8.10 | +8.0% | 780 | Mid-low aspect |
Specifications
| Family | THUNDER |
|---|---|
| Size | 750 |
| Area, cm² | 750 |
| Area basis | unknown |
| Span, mm | 750 |
| Chord, mm | — |
| Aspect ratio | 7.50 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone |
| Construction | Full Carbon |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
