Slingshot E 1090
- Discontinuedsuperseded or no longer in the brand’s current range
- 2,200area, cm²
- 1,090span, mm
- 5.40aspect ratio
- Lowaspect · AR ≤ 6.0
Family Phantasm E Brand’s category Entry Disciplines wing carbon · 2022

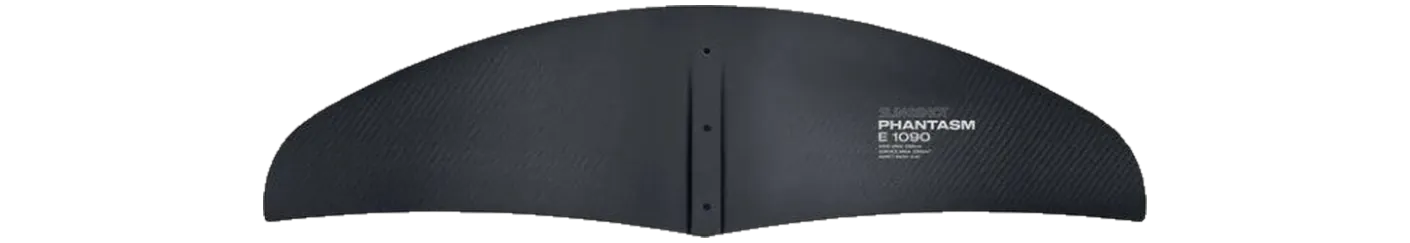

The Slingshot E 1090’s planform, traced from a retailer’s photograph rather than from Slingshot’s own.
The Phantasm E has run 3 sizes, 1,550–2,200 cm², including discontinued sizes; aspect ratio moves 4.8–5.5 across the range.
Its 1,090 mm span is 23% narrower than typical for the area — the median across the 34 current wings within 10% of its size is 1,415 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| ENSIS | PACER Front Wing 2200 | 2,200 | +0.0% | 5.45 | +0.9% | 1,094 | Low aspect |
| F-One | GRAVITY Carbon 2200 | 2,200 | +0.0% | 5.50 | +1.9% | 1,100 | Low aspect |
| KT Foiling | Instinct 2200 | 2,200 | +0.0% | 5.00 | -7.4% | 1,050 | Low aspect |
Specifications
| Family | Phantasm E |
|---|---|
| Size | 1090 |
| Area, cm² | 2,200 |
| Area basis | unknown |
| Span, mm | 1,090 |
| Chord, mm | — |
| Aspect ratio | 5.40 |
| Band | Low aspect |
| Brand’s category | Entry |
| Disciplines | wing |
| Construction | carbon |
| Model year | 2022 |
| Source | manufacturer · read 2026-08-13 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
