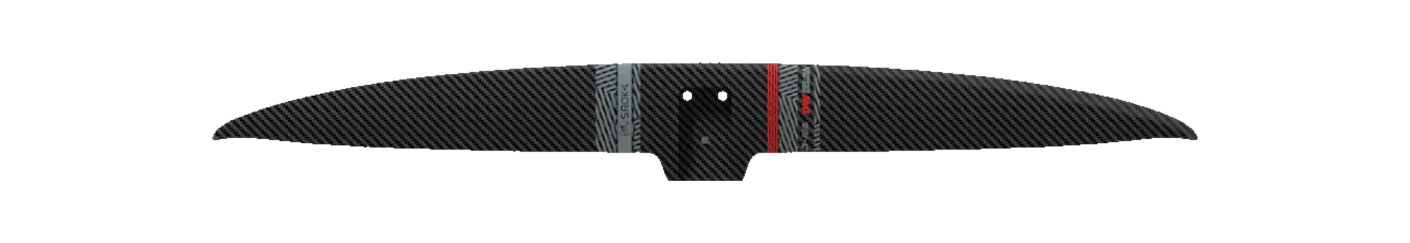

Sroka S-Foil DW 700
- 700area, cm²
- 990span, mm
- 14.00aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family DW Chord 91 mm Brand’s category Downwind Disciplines downwind, wing, sup carbon prepreg high-modulus (Carbone Prepreg Haut Module)
Its 990 mm span is 22% wider than typical for the area — the median across the 122 current wings within 10% of its size is 812 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | DWP (Downwind Performance) DWP685 | 685 | -2.1% | 13.55 | -3.2% | 960 | Very high aspect |
| Duotone | Hyperglide D/LAB 680 | 680 | -2.9% | 14.40 | +2.9% | 1,000 | Very high aspect |
| Unifoil | Quest 110 | 709 | +1.3% | 13.30 | -5.0% | 970 | Very high aspect |
| Lift Foils | 110 High Aspect X Front Wing | 710 | +1.4% | 13.10 | -6.4% | 965 | Very high aspect |
| Lift Foils | Florence 110 X Front Wing | 710 | +1.4% | 13.10 | -6.4% | 965 | Very high aspect |
| Code Foils | R Series Front Wing 680R | 680 | -2.9% | 13.00 | -7.1% | 935 | Very high aspect |
| Naish | SHA Foil Front Wing 733 | 733 | +4.7% | 13.10 | -6.4% | 980 | Very high aspect |
Specifications
| Family | DW |
|---|---|
| Size | DW 700 |
| Area, cm² | 700 |
| Area basis | unknown |
| Span, mm | 990 |
| Chord, mm | 91 |
| Aspect ratio | 14.00 |
| Band | Very high aspect |
| Brand’s category | Downwind |
| Disciplines | downwind, wing, sup |
| Construction | carbon prepreg high-modulus (Carbone Prepreg Haut Module) |
| Model year | — |
| Source | manufacturer · read 2026-10-05 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
