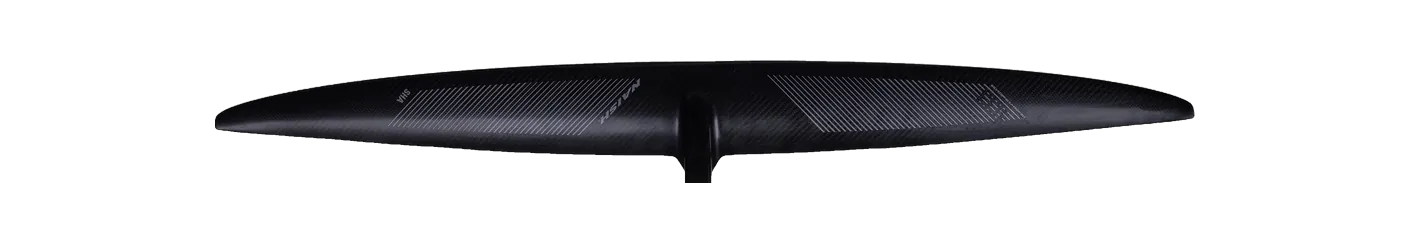

Naish SHA Foil Front Wing 733
- 733area, cm²
- 980span, mm
- 13.10aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family SHA Area basis projected Brand’s category Downwind Disciplines downwind, sup, wing, pump 100% prepreg 3K carbon, dual expansion core · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the AFS Evo HA Front Wing HA750, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The SHA Foil Front Wing runs 3 sizes, 733–1,133 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 980 mm span is 18% wider than typical for the area — the median across the 123 current wings within 10% of its size is 830 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| AFS | Evo HA Front Wing HA750 | 750 | +2.3% | 13.30 | +1.5% | 1,000 | Very high aspect |
| GONG | Veloce HDW V3 S | 750 | +2.3% | 13.30 | +1.5% | 1,000 | Very high aspect |
| North | Sonar DW750 | 750 | +2.3% | 13.30 | +1.5% | 1,000 | Very high aspect |
| Armstrong | DWP (Downwind Performance) DWP755 | 755 | +3.0% | 13.00 | -0.8% | 1,000 | Very high aspect |
| Lift Foils | 110 High Aspect X Front Wing | 710 | -3.1% | 13.10 | +0.0% | 965 | Very high aspect |
| Lift Foils | Florence 110 X Front Wing | 710 | -3.1% | 13.10 | +0.0% | 965 | Very high aspect |
| Unifoil | Quest 110 | 709 | -3.3% | 13.30 | +1.5% | 970 | Very high aspect |
| Cabrinha | Prestige 760 | 760 | +3.7% | 12.38 | -5.5% | 970 | Very high aspect |
| GONG | Veloce DW V3 Atmo S | 750 | +2.3% | 14.10 | +7.6% | 1,030 | Very high aspect |
Specifications
| Family | SHA |
|---|---|
| Size | SHA 733 |
| Area, cm² | 733 |
| Area basis | projected |
| Span, mm | 980 |
| Chord, mm | — |
| Aspect ratio | 13.10 |
| Band | Very high aspect |
| Brand’s category | Downwind |
| Disciplines | downwind, sup, wing, pump |
| Construction | 100% prepreg 3K carbon, dual expansion core |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
