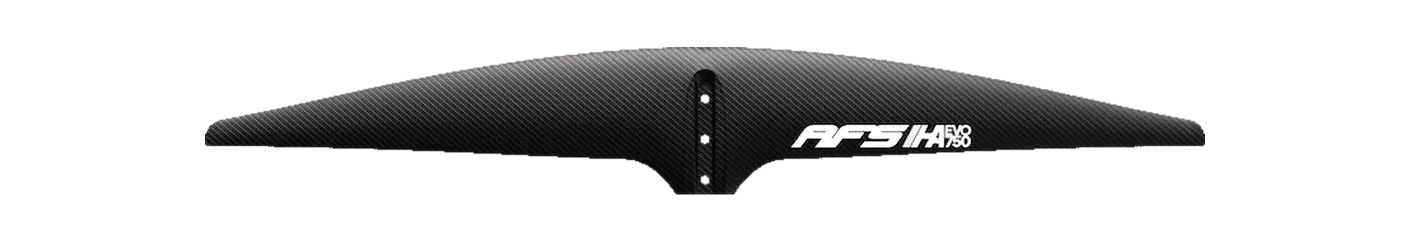

AFS Evo HA Front Wing HA750
- 750area, cm²
- 1,000span, mm
- 13.30aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family EVO Chord 113 mm Brand’s category All-round / freeride Disciplines wing, downwind, parawing HR Carbon / Corecell (per Evo range) · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Veloce HDW V3 S, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
Its 1,000 mm span is 20% wider than typical for the area — the median across the 129 current wings within 10% of its size is 830 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Veloce HDW V3 S | 750 | +0.0% | 13.30 | +0.0% | 1,000 | Very high aspect |
| North | Sonar DW750 | 750 | +0.0% | 13.30 | +0.0% | 1,000 | Very high aspect |
| Armstrong | DWP (Downwind Performance) DWP755 | 755 | +0.7% | 13.00 | -2.3% | 1,000 | Very high aspect |
| Naish | SHA Foil Front Wing 733 | 733 | -2.3% | 13.10 | -1.5% | 980 | Very high aspect |
| Code Foils | R Series Front Wing 770R | 770 | +2.7% | 13.00 | -2.3% | 1,000 | Very high aspect |
| Axis | Fireball ULTRA 1000 | 773 | +3.1% | 12.95 | -2.6% | 1,000 | Very high aspect |
| Armstrong | UHA (Ultra High Aspect) UHA770 | 770 | +2.7% | 12.60 | -5.3% | 985 | Very high aspect |
| KT Foiling | Solus 775 | 775 | +3.3% | 14.00 | +5.3% | 1,040 | Very high aspect |
| GONG | Veloce DW V3 Atmo S | 750 | +0.0% | 14.10 | +6.0% | 1,030 | Very high aspect |
| Cabrinha | Prestige 760 | 760 | +1.3% | 12.38 | -6.9% | 970 | Very high aspect |
Specifications
| Family | EVO |
|---|---|
| Size | HA750 |
| Area, cm² | 750 |
| Area basis | unknown |
| Span, mm | 1,000 |
| Chord, mm | 113 |
| Aspect ratio | 13.30 |
| Band | Very high aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, downwind, parawing |
| Construction | HR Carbon / Corecell (per Evo range) |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
