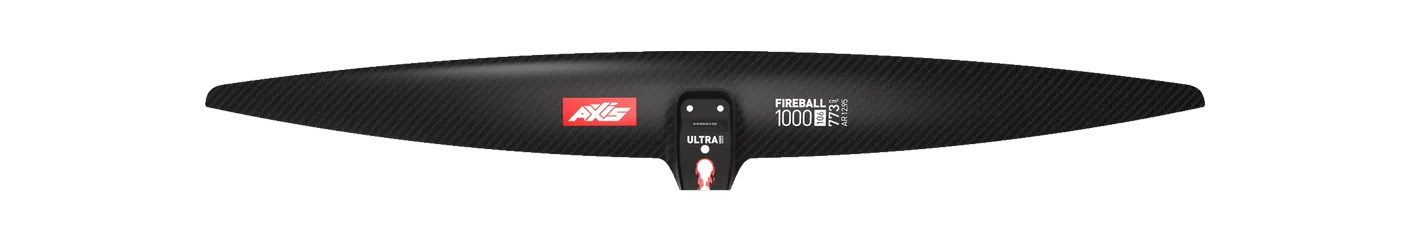

Axis Fireball ULTRA 1000
- 773area, cm²
- 1,000span, mm
- 12.95aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Fireball Area basis flat Chord 106 mm Brand’s category Downwind Disciplines downwind, race, pump, wing UHM carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Armstrong UHA (Ultra High Aspect) UHA770 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Fireball ULTRA runs 9 sizes, 604–1,525 cm², and changes proportion as it grows: aspect ratio runs 12.8 at one end of the range to 20.1 at the other, so its sizes differ in shape as well as in area.
Its 1,000 mm span is 19% wider than typical for the area — the median across the 136 current wings within 10% of its size is 842 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Code Foils | R Series Front Wing 770R | 770 | -0.4% | 13.00 | +0.4% | 1,000 | Very high aspect |
| Armstrong | UHA (Ultra High Aspect) UHA770 | 770 | -0.4% | 12.60 | -2.7% | 985 | Very high aspect |
| Armstrong | DWP (Downwind Performance) DWP755 | 755 | -2.3% | 13.00 | +0.4% | 1,000 | Very high aspect |
| Cabrinha | Prestige 760 | 760 | -1.7% | 12.38 | -4.4% | 970 | Very high aspect |
| AFS | Evo HA Front Wing HA750 | 750 | -3.0% | 13.30 | +2.7% | 1,000 | Very high aspect |
| GONG | Veloce HDW V3 S | 750 | -3.0% | 13.30 | +2.7% | 1,000 | Very high aspect |
| North | Sonar DW750 | 750 | -3.0% | 13.30 | +2.7% | 1,000 | Very high aspect |
| AFS | Pure HA Fuselink Foil (monobloc front wing + fuselage) 800 | 800 | +3.5% | 13.00 | +0.4% | 1,000 | Very high aspect |
| F-One | EAGLE X UHM Carbon 800 | 800 | +3.5% | 12.00 | -7.3% | 980 | Very high aspect |
Specifications
| Family | Fireball |
|---|---|
| Size | Fireball 1000 |
| Area, cm² | 773 |
| Area basis | flat |
| Span, mm | 1,000 |
| Chord, mm | 106 |
| Aspect ratio | 12.95 |
| Band | Very high aspect |
| Brand’s category | Downwind |
| Disciplines | downwind, race, pump, wing |
| Construction | UHM carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
