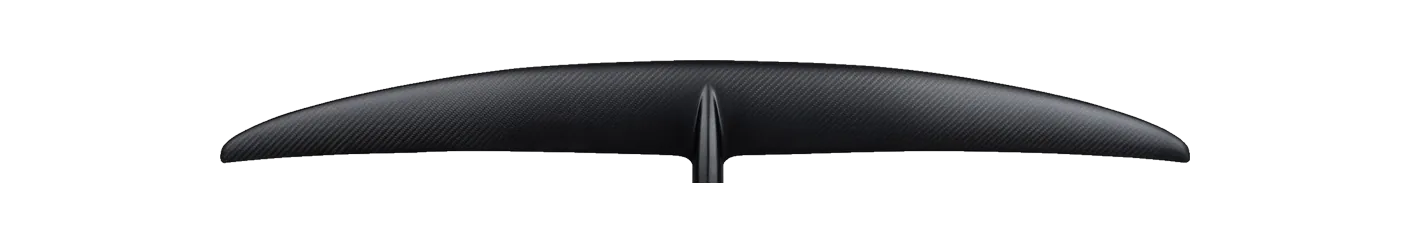

Unifoil Quest 110
- 709area, cm²
- 970span, mm
- 13.30aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Quest Chord 94 mm Brand’s category Downwind Disciplines downwind, sup, parawing, pump, prone carbon · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Lift Foils 110 High Aspect X Front Wing, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Quest runs 3 sizes, 709–1,032 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 970 mm span is 19% wider than typical for the area — the median across the 116 current wings within 10% of its size is 815 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Lift Foils | 110 High Aspect X Front Wing | 710 | +0.1% | 13.10 | -1.5% | 965 | Very high aspect |
| Lift Foils | Florence 110 X Front Wing | 710 | +0.1% | 13.10 | -1.5% | 965 | Very high aspect |
| Axis | Fireball ULTRA 940 | 689 | -2.8% | 12.84 | -3.5% | 940 | Very high aspect |
| Armstrong | DWP (Downwind Performance) DWP685 | 685 | -3.4% | 13.55 | +1.9% | 960 | Very high aspect |
| Naish | SHA Foil Front Wing 733 | 733 | +3.4% | 13.10 | -1.5% | 980 | Very high aspect |
| Code Foils | R Series Front Wing 680R | 680 | -4.1% | 13.00 | -2.3% | 935 | Very high aspect |
Specifications
| Family | Quest |
|---|---|
| Size | Quest 110 |
| Area, cm² | 709 |
| Area basis | unknown |
| Span, mm | 970 |
| Chord, mm | 94 |
| Aspect ratio | 13.30 |
| Band | Very high aspect |
| Brand’s category | Downwind |
| Disciplines | downwind, sup, parawing, pump, prone |
| Construction | carbon |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
