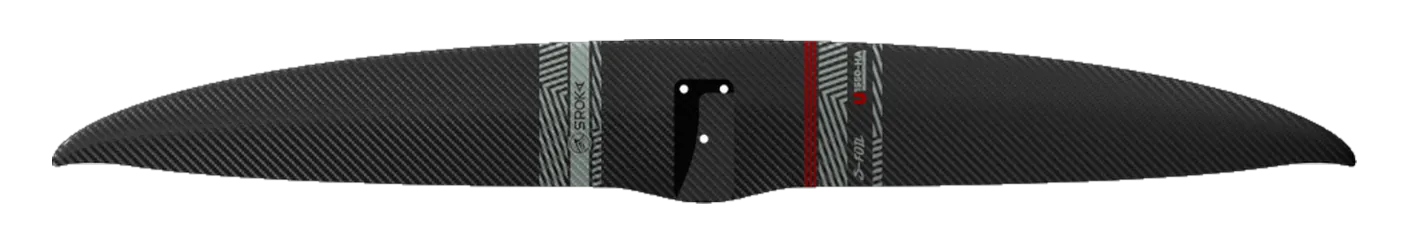

Sroka S-Foil UHA 1550
- 1,550area, cm²
- 1,305span, mm
- 11.00aspect ratio
- Highaspect · AR 9.5 – 11.5
Family UHA Chord 156 mm Brand’s category Glide / high aspect Disciplines wing, downwind, pump
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the GONG Hyper Trail V3 Atmo XXL (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The UHA runs 6 sizes, 700–1,550 cm²; aspect ratio moves 11.0–11.6 across the range.
Its 1,305 mm span is 15% wider than typical for the area — the median across the 80 current wings within 10% of its size is 1,130 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| AFS | Enduro GLT Front Wing 1600 | 1,600 | +3.2% | 11.00 | +0.0% | 1,323 | High aspect |
| Code Foils | Kanga Series Front Wing 1600 | 1,600 | +3.2% | 10.60 | -3.6% | 1,300 | High aspect |
| GONG | Hyper Trail V3 Atmo XXL | 1,500 | -3.2% | 11.40 | +3.6% | 1,310 | High aspect |
| F-One | JAM HM Carbon 1600 | 1,600 | +3.2% | 10.20 | -7.3% | 1,280 | High aspect |
Specifications
| Family | UHA |
|---|---|
| Size | UHA 1550 |
| Area, cm² | 1,550 |
| Area basis | unknown |
| Span, mm | 1,305 |
| Chord, mm | 156 |
| Aspect ratio | 11.00 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, downwind, pump |
| Construction | — |
| Model year | — |
| Source | manufacturer · read 2026-10-05 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
