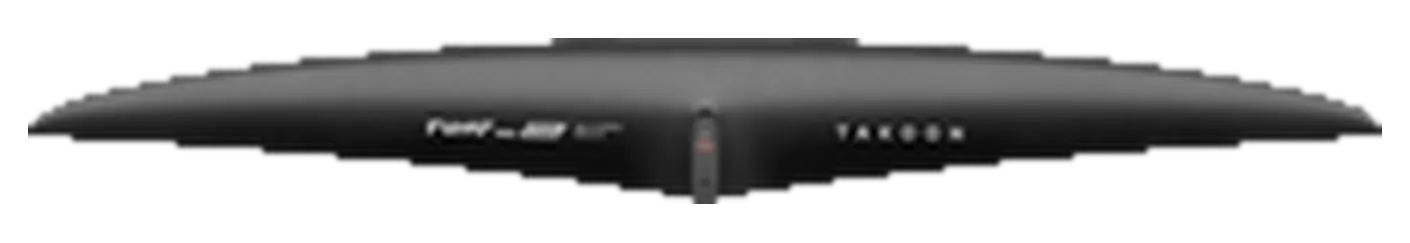

Takoon Pump Pro Front Wing 1950 hydrofoil front wing: 1,950 cm², 1,590 mm span, aspect ratio 13.00, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Takoon's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Sirus V3 Atmo XXL | 1,940 | -0.5% | 12.50 | -3.8% | 1,560 | C5 Very high aspect |
| GONG | Sirus V3 XXL | 2,000 | +2.6% | 12.50 | -3.8% | 1,560 | C5 Very high aspect |
| Family | Pump Pro |
|---|---|
| Size | 1950 |
| Area, cm² | 1,950 |
| Area basis | unknown |
| Span, mm | 1,590 |
| Chord, mm | 192 |
| Aspect ratio | 13.00 |
| Band | C5 Very high aspect |
| Brand files it under | Pump / dock |
| Disciplines | pump, sup, prone, downwind |
| Construction | — |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Takoon on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
