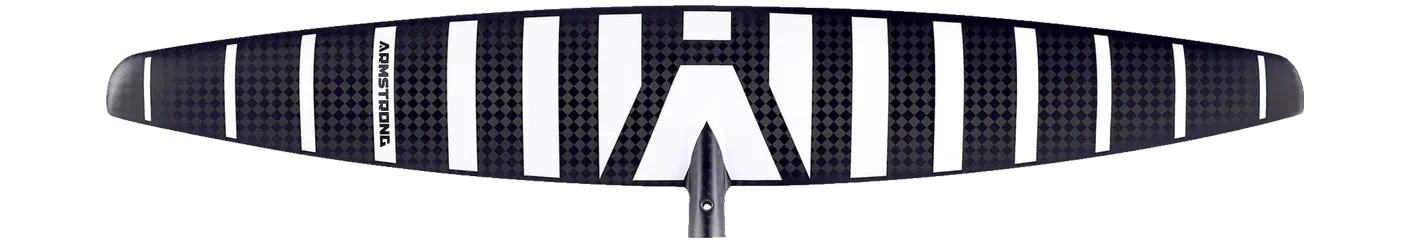

Armstrong APF (All-round Pump Foil) APF1675
- 1,675area, cm²
- 1,202span, mm
- 8.60aspect ratio
- Midaspect · AR 8.5 – 9.5
Family APF Brand’s category Pump / dock Disciplines pump carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the F-One SEVEN SEAS Carbon 1600 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The APF runs 3 sizes, 1,350–1,880 cm², and changes proportion as it grows: aspect ratio runs 8.6 at one end of the range to 10.7 at the other, so its sizes differ in shape as well as in area.
Its 1,202 mm span is typical for the area: the median across the 67 current wings within 10% of its size is 1,191 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| ENSIS | STRIDE ACE Front Wing 1740 | 1,740 | +3.9% | 9.10 | +5.8% | 1,260 | Mid aspect |
| F-One | SEVEN SEAS Carbon 1600 | 1,600 | -4.5% | 8.00 | -7.0% | 1,130 | Mid-low aspect |
| Takoon | Pump One Front Wing 1600 | 1,600 | -4.5% | 9.15 | +6.4% | 1,210 | Mid aspect |
Specifications
| Family | APF |
|---|---|
| Size | APF1675 |
| Area, cm² | 1,675 |
| Area basis | unknown |
| Span, mm | 1,202 |
| Chord, mm | — |
| Aspect ratio | 8.60 |
| Band | Mid aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
