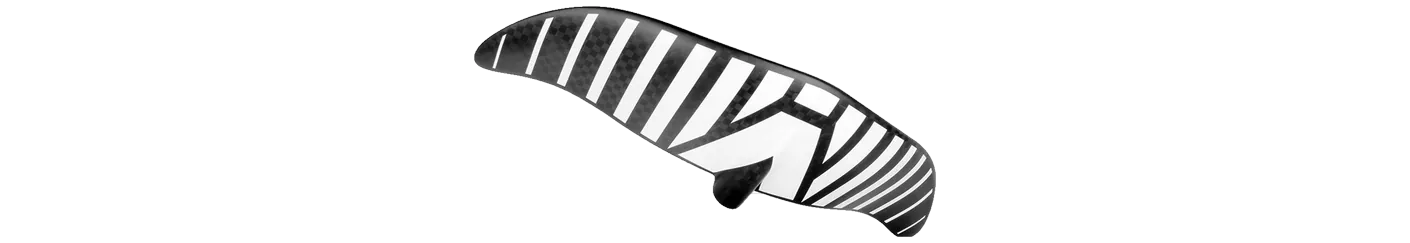

Armstrong CF (Carving Freeride) V1 CF800
- Discontinuedsuperseded or no longer in the brand’s current range
- 800area, cm²
- 600span, mm
- 4.50aspect ratio
- Lowaspect · AR ≤ 6.0
Family CF (V1) Brand’s category All-round / freeride Disciplines wing, prone, kite, wake carbon · 2019-2021
Its 600 mm span is 30% narrower than typical for the area — the median across the 124 current wings within 10% of its size is 855 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 2.8× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Kite Foil Front Wing 810 | 810 | +1.2% | 5.10 | +13.3% | 640 | Low aspect |
| Axis | HPS (High Performance Speed) 650 | 769 | -3.9% | 5.49 | +22.0% | 650 | Low aspect |
| Slingshot | One-Lock Kite 855 | 855 | +6.9% | 5.50 | +22.2% | 684 | Low aspect |
Specifications
| Family | CF (V1) |
|---|---|
| Size | CF800 |
| Area, cm² | 800 |
| Area basis | unknown |
| Span, mm | 600 |
| Chord, mm | — |
| Aspect ratio | 4.50 |
| Band | Low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone, kite, wake |
| Construction | carbon |
| Model year | 2019-2021 |
| Source | retailer |
The brand publishes no aspect ratio; this one is derived from its published span and area (span² ÷ area).
Data current to August 2026. The figures above are read from a retailer's listing rather than Armstrong's own pages, converted to comparable units.
