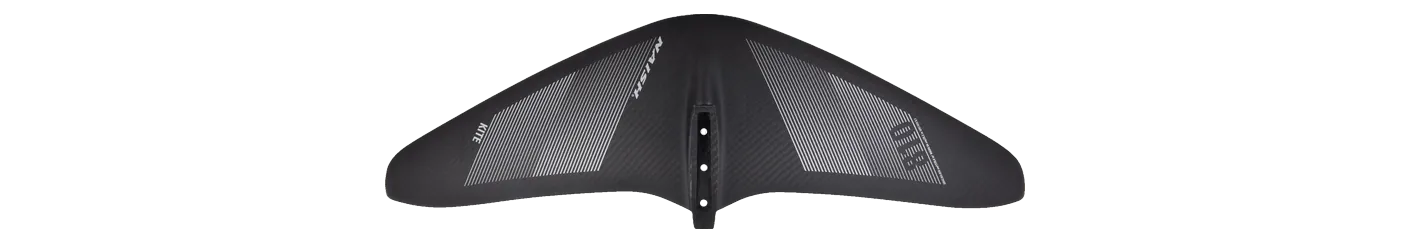

Naish Kite Foil Front Wing 810
- 810area, cm²
- 640span, mm
- 5.10aspect ratio
- Lowaspect · AR ≤ 6.0
Family Kite Foil Area basis projected Brand’s category Kite Disciplines kite 100% prepreg 3K carbon outer, dual expansion core, UD carbon and glass laminate · 2024-2026
No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Axis HPS (High Performance Speed) 650 (#1) is already over it. Select a numbered wing to draw it — up to three at a time.
The Kite Foil Front Wing runs 3 sizes, 650–980 cm², and changes proportion as it grows: aspect ratio runs 4.2 at one end of the range to 6.3 at the other, so its sizes differ in shape as well as in area.
Its 640 mm span is 26% narrower than typical for the area — the median across the 122 current wings within 10% of its size is 864 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 1.5× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | HPS (High Performance Speed) 650 | 769 | -5.1% | 5.49 | +7.6% | 650 | Low aspect |
| Slingshot | One-Lock Kite 855 | 855 | +5.6% | 5.50 | +7.8% | 684 | Low aspect |
| Slingshot | One-Lock Kite 755 | 755 | -6.8% | 5.70 | +11.8% | 657 | Low aspect |
Specifications
| Family | Kite Foil |
|---|---|
| Size | Kite Foil 810 |
| Area, cm² | 810 |
| Area basis | projected |
| Span, mm | 640 |
| Chord, mm | — |
| Aspect ratio | 5.10 |
| Band | Low aspect |
| Brand’s category | Kite |
| Disciplines | kite |
| Construction | 100% prepreg 3K carbon outer, dual expansion core, UD carbon and glass laminate |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
