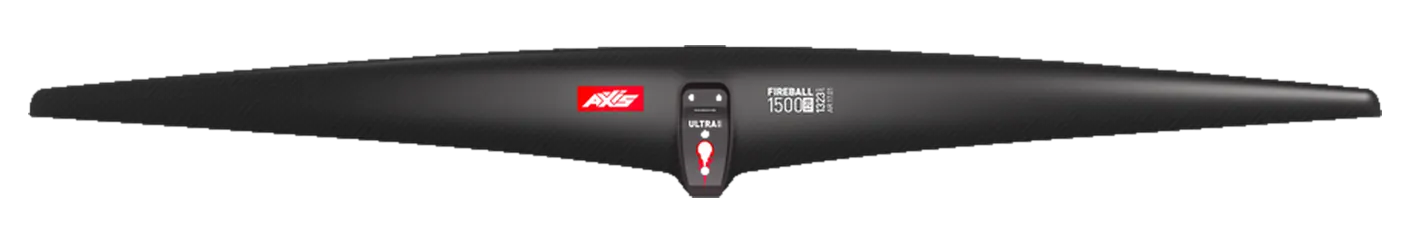

Axis Fireball ULTRA Fireball 1500 hydrofoil front wing: 1,313 cm², 1,500 mm span, aspect ratio 17.15, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Ultra Trail V3 XL | 1,250 | -4.8% | 17.60 | +2.6% | 1,480 | C6 Ultra high aspect |
| GONG | Ultra Trail V3 Atmo XL | 1,250 | -4.8% | 17.70 | +3.2% | 1,490 | C6 Ultra high aspect |
| Family | Fireball |
|---|---|
| Size | Fireball 1500 |
| Area, cm² | 1,313 |
| Area basis | flat |
| Span, mm | 1,500 |
| Chord, mm | 128 |
| Aspect ratio | 17.15 |
| Band | C6 Ultra high aspect |
| Brand files it under | Downwind |
| Disciplines | downwind, race, pump, wing |
| Construction | UHM carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
