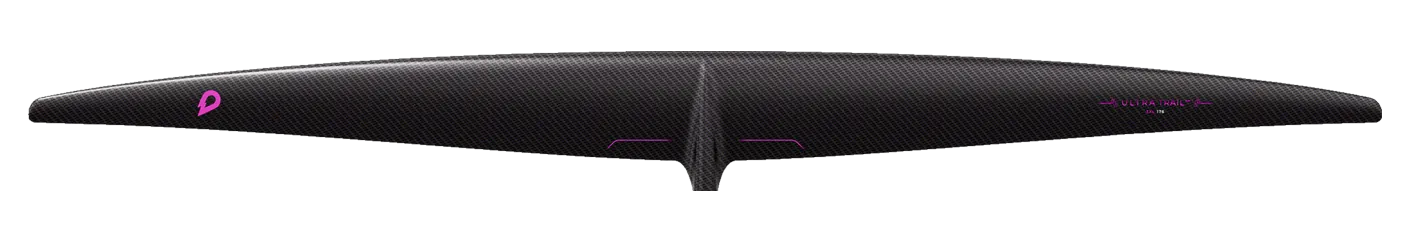

GONG Ultra Trail V3 Atmo XL
- 1,250area, cm²
- 1,490span, mm
- 17.70aspect ratio
- Ultra highaspect · AR > 15.0
Family Trail Chord 121 mm Brand’s category Pump / dock Disciplines pump Pro Team / 3K Texalium clear carbon prepreg · 2026
No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Axis Fireball ULTRA 1500 (#1) is already over it. Select a numbered wing to draw it — up to three at a time.
The Ultra Trail V3 Atmo runs 5 sizes, 1,250–2,250 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,490 mm span is 45% wider than typical for the area — the median across the 109 current wings within 10% of its size is 1,030 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 2.6× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | Fireball ULTRA 1500 | 1,313 | +5.0% | 17.15 | -3.1% | 1,500 | Ultra high aspect |
| Takoon | Pump Extreme Front Wing 1400 | 1,400 | +12.0% | 17.60 | -0.6% | 1,570 | Ultra high aspect |
| KT Foiling | Solus 1110 | 1,110 | -11.2% | 14.00 | -20.9% | 1,250 | Very high aspect |
Specifications
| Family | Trail |
|---|---|
| Size | XL |
| Area, cm² | 1,250 |
| Area basis | unknown |
| Span, mm | 1,490 |
| Chord, mm | 121 |
| Aspect ratio | 17.70 |
| Band | Ultra high aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
