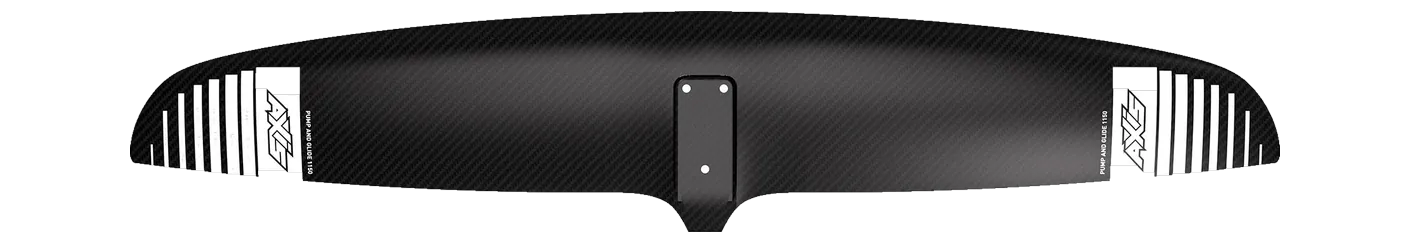

Axis PNG (Pump and Glide) PNG 1150 hydrofoil front wing: 1,778 cm², 1,150 mm span, aspect ratio 7.72, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | X-Glide V2 Front Wing 1700 | 1,700 | -4.4% | 7.20 | -6.7% | 1,100 | C2 Mid-low aspect |
| Family | PNG |
|---|---|
| Size | PNG 1150 |
| Area, cm² | 1,778 |
| Area basis | flat |
| Span, mm | 1,150 |
| Chord, mm | 180 |
| Aspect ratio | 7.72 |
| Band | C2 Mid-low aspect |
| Brand files it under | Pump / dock |
| Disciplines | downwind, sup, prone, pump, wing, wake, kite |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
