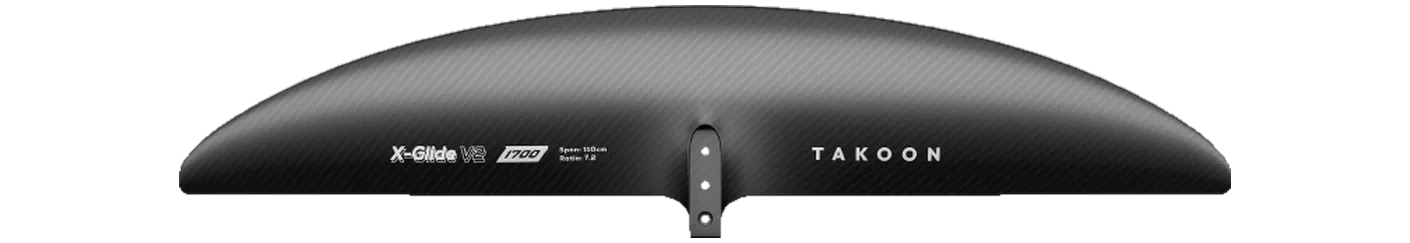

Takoon X-Glide V2 Front Wing 1700
- 1,700area, cm²
- 1,100span, mm
- 7.20aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family X-Glide V2 Chord 199 mm Brand’s category All-round / freeride Disciplines wing, prone, sup, pump, downwind
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the AFS Evo Front Wing 1650, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The X-Glide V2 Front Wing runs 4 sizes, 1,050–1,700 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,100 mm span is 8% narrower than typical for the area — the median across the 71 current wings within 10% of its size is 1,200 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| AFS | Evo Front Wing 1650 | 1,650 | -2.9% | 7.50 | +4.2% | 1,110 | Mid-low aspect |
| Naish | Jet HA Front Wing 1640 | 1,640 | -3.5% | 7.38 | +2.5% | 1,100 | Mid-low aspect |
| Axis | PNG (Pump and Glide) 1150 | 1,778 | +4.6% | 7.72 | +7.2% | 1,150 | Mid-low aspect |
Specifications
| Family | X-Glide V2 |
|---|---|
| Size | 1700 |
| Area, cm² | 1,700 |
| Area basis | unknown |
| Span, mm | 1,100 |
| Chord, mm | 199 |
| Aspect ratio | 7.20 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone, sup, pump, downwind |
| Construction | — |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
